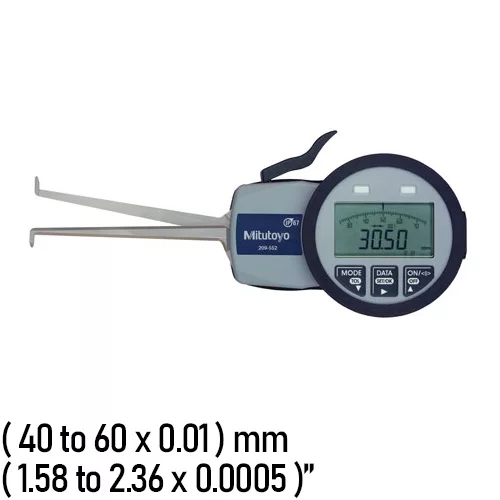

209-555 Mitutoyo Digimatic Caliper Gauges

209-555 Mitutoyo Digimatic Caliper Gauge

This versatile inside diameter measuring gauge is used for hole diameters, groove thickness, tube thickness, and hard-to-reach dimensions. The Digimatic Caliper Gauge provides error-free LCD readings as well as data output for SPC analysis. Shop for MRM 209-555 at MRM Metrology

It comes with a one-year manufacturer’s warranty.
Shop for 209-555 Digimatic Caliper Gauge at MRM Metrology, and save.
Buy 209-555 Caliper Gauge now for the best price.

Email us for the lowest price. Click on [email protected] to request a quotation.




Other Models
SKU: 209-555 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Versatile ID measuring gages for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions
○ Caliper Gages provide error-free LCD readings as well as data output for SPC analysis
○ Excellent resistance against water and dust IP67 level
○ Zeroset, Preset, Auto power OFF, Inch/Metric, conversion
○ Data hold, Max/Min value holding, Data output

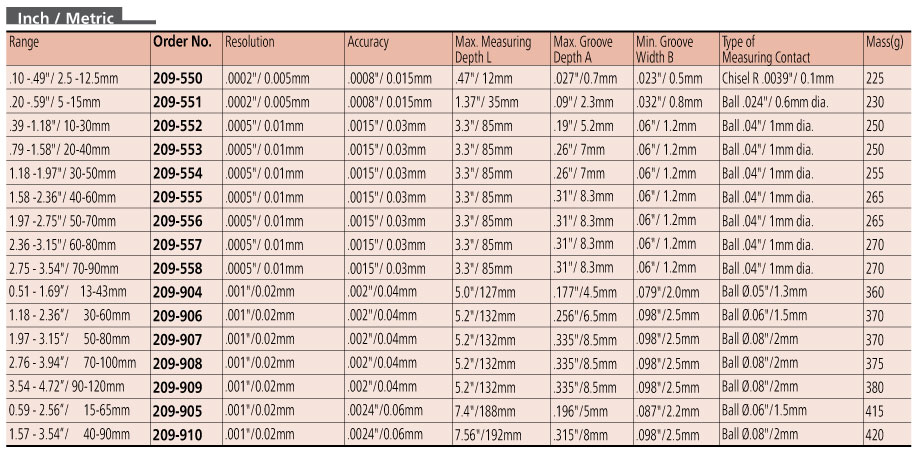

Range (40 to 60) mm / (1.58 to 2.36)”
Resolution 0.01 mm / 0.0005″
Accuracy ± 0.03 mm / ± 0.0015″

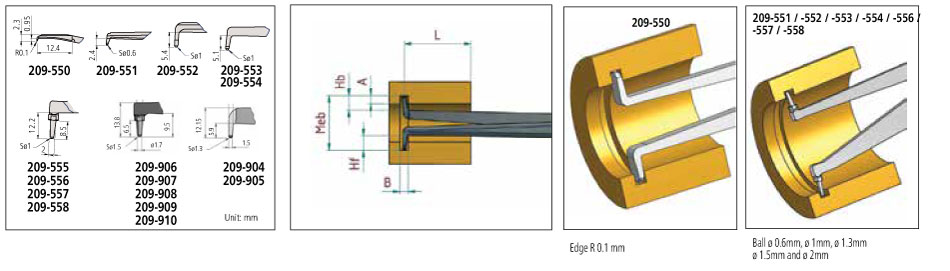

Max Measu Depth L 85 mm / 3.3″
Max Groove Depth A 8.3 mm / 0.31″
Min Groove Width B 1.2 mm / 0.06″


PL1961-09 SPC adapter
937387 Digimatic Cable (1 m)
965013 Digimatic Cable (2 m)
KPL8004-50 Holder for stand

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 209-555 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
209-555 Mitutoyo Digimatic Caliper Gauge

For a quote, please email us at  [email protected]
