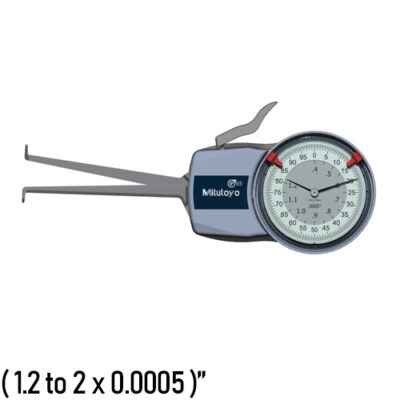

209-355 Mitutoyo Dial Caliper Gauge

$685.00

The 209-355 Dial Caliper Gauge utilizes spring-loaded jaws for constant point contact pressure for highly accurate comparison measurements of hole diameters, grooves and tube thicknesses. The dial display provides precise, readable measurements.

It comes with one year limited manufacturer’s warranty.
Shop for MRM 209-355 at MRM Metrology and use CAL 209-355 for ordering calibration services.

Other Models

SKU: 209-355 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
○ Indicator should be used in conjunction with a setting ring or micrometer
○ White dial face for easier, precise measurement readings
○ Crystal is glare-free with a scratch-resistant coating
○ Supplied in a fitted plastic case

Range (1.2 to 2)”
Graduation 0.0005″
Accuracy ± 0.0015″
Max Measuring Depth 3.3″
Max Groove Depth 0.26″
Min Groove Width 0.06″
Measuring Contact Type Ball
Measuring Contact Diameter 1 mm
Mass 200 g
Manufacturer’s Warranty One year limited manufacturer’s warranty

MRM-H730


Max Measuring Depth (L) 3.3″
Max Groove Depth (A) 0.26″
Min Groove Width (B) 0.06″

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
209-355 Mitutoyo Dial Caliper Gauge
