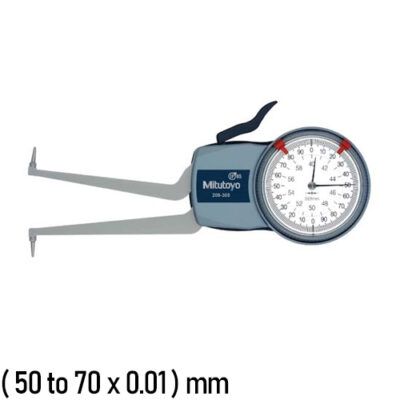

209-306 Mitutoyo Dial Caliper Gauge (50 to 70) mm

Original price was: CAD 960.00.Current price is: CAD 775.00.

The 209-306 Dial Caliper Gauge utilizes spring-loaded jaws for constant point contact pressure for highly accurate comparison measurements of hole diameters, grooves and tube thicknesses. The dial display provides precise, readable measurements.

It comes with a one-year manufacturer’s warranty.
Shop for 209-306 Caliper Gauge at MRM Metrology, and save.
Buy 209-306 Caliper now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models

SKU: 209-306 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
○ Indicator should be used in conjunction with a setting ring or micrometer
○ White dial face for easier, precise measurement readings
○ Crystal is glare-free with a scratch-resistant coating
○ Supplied in a fitted plastic case
Range (50 to 70) mm
Graduation 0.01 mm
Accuracy ± 0.03 mm
Max Measuring Depth 85 mm
Max Groove Depth 8.3 mm
Min Groove Width 1.2 mm
Measuring Contact Type Ball
Measuring Contact Diameter 1 mm
Mass 195 g
Manufacturer’s Warranty One year limited manufacturer’s warranty


Max Measuring Depth (L) 85 mm
Max Groove Depth (A) 8.3 mm
Min Groove Width (B) 1.2 mm

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 209-306 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
209-306 Mitutoyo Dial Caliper Gauge

For a quote, please email us at  [email protected]
