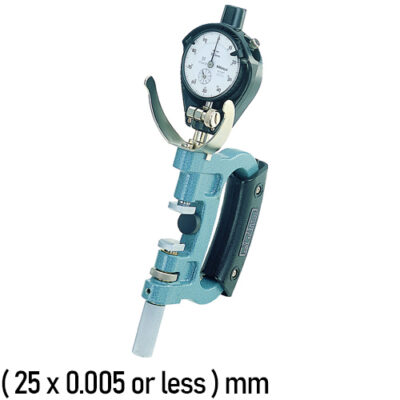

201-101 Mitutoyo Snap Gauge

Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes. Dial or Digital indicator is optional. Both front edges of the anvil are chamfered for easy insertion.
Shop for MRM 201-101 at MRM Metrology

Range (0 to 25) mm
Parallelism 0.005 mm or less
Measuring Force 15N ± 3N
Other Models

SKU: 201-101 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes
○ Dial indicator is optional
○ Both front edges of the anvil are chamfered for easy insertion
○ Gage stem diameter 8 mm

Range (0 to 25) mm
Parallelism 0.005 mm or less
Measuring Force 15N ± 3N
Anvil Retracting Stroke 2 mm / 0.078″
Anvil Positioning Range 25 mm / 1″
Anvil Flatness 0.001 mm / 0.00004”
Recommended Dial Indicator 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
201-101 Mitutoyo Snap Gauge

For a quote, please email us at  [email protected]
