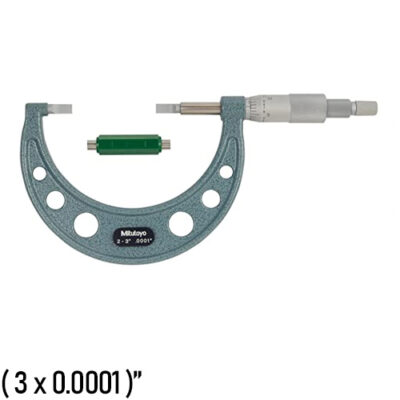

Mitutoyo Blade Micrometer

122-127 Mitutoyo Micrometer, Blade

Non-Rotating Spindle. The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas


Range (2 to 3)”
Graduation 0.0001″
Accuracy ± 0.00015″
Other Models

Request a Quote
Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas
○ With Ratchet Stop for constant force
○ Speedy spindle feed of 10 mm / 0.4”/rev. (Quickmike type)
○ With a standard bar except (0 to 25) mm / (0 to 1)” models
○ Supplied in fitted plastic case

Range (2 to 3)”
Graduation 0.0001″
Accuracy ± 0.00015″
Remarks Type A
Mass 360 g
Parallelism 0.00012”

Mitutoyo Micrometer Blade

Mitutoyo Micrometer Blade

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
122-127 Mitutoyo Micrometer, Blade

For a quote, please email us at  Service@MRMmetrology.com
