Product Description
- Features
- Specifications
- Dimensions
- Accessories
- Downloads
- Calibration
| ○ Measures tubing thickness, shoulder edge distance, rivet head height, etc. with interchangeable anvils (flat anvil, rod anvil, V-anvil) |
| ○ Supplied with Flat Anvil (201216) and Rod Anvil |
| ○ With special Disk Anvils. The Uni-Mike is used as a height micrometer. The disks have a lapped, mirror surface |
| ○ Supplied in fitted plastic case |
| Range | (25 to 50) mm |
| Graduation | 0.01 mm/td> |
| Accuracy | ± 0.004 mm |
| Mass | 320 g |
| Rod Anvil | ø5 mm / 0.197” rod anvil (201379) |
| Spindle face | Carbide tipped |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

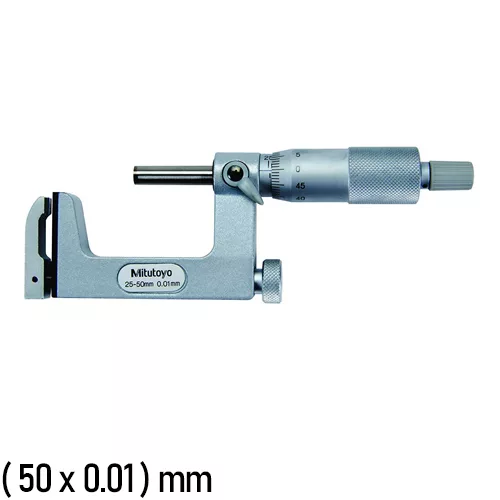

117-102 Mitutoyo Uni-Mike Micrometer
For a quote, please email us at [email protected]
