114-204 Micrometer V-Anvil

114-204 Mitutoyo V-Anvil Micrometer, 25 mm

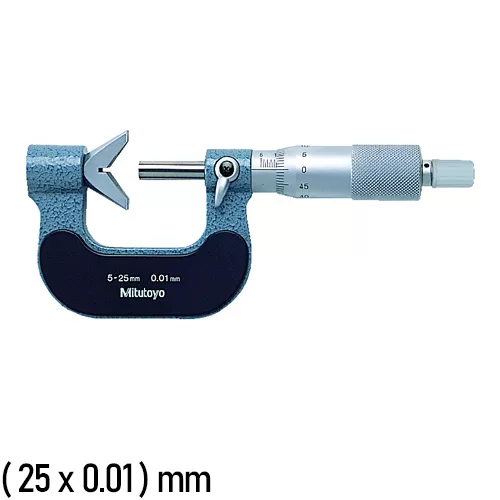

The 114-204 V-Anvil Micrometer measures the outside diameter of cutting heads (such as taps, reamers, end mills) with an odd number of flutes. With Ratchet Stop for constant force. For 3 Flutes cutting head.

It comes with a one-year manufacturer’s warranty.
Shop for 114-204 Micrometer at MRM Metrology, and save.
Buy 114-204 now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.



Other Models

SKU: 114-204 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Measures the outside diameter of cutting heads(such as taps,reamers,end mills) with odd number of flutes
○ With Ratchat Stop for constant force
○ Supplied with setting standard
○ V-anvils with a centerline grove are available
○ For measuring pitch diameters of of taps which have a small diamter by using single-wire method
○ Supplied in fitted plastic case

Range (2.3 to 25) mm
Graduation 0.01 mm
Accuracy ± 0.004 mm
Remarks Without Groove
Setting Standards Ø5 mm
Mass 290 g
Flatness (spindle/anvil) 0.6 µm / 0.000024″; 1.3 µm / 0.00005″
Spindle face Carbide tipped

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 114-204 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
114-204 Mitutoyo V-Anvil Micrometer

For a quote, please email us at  [email protected]
