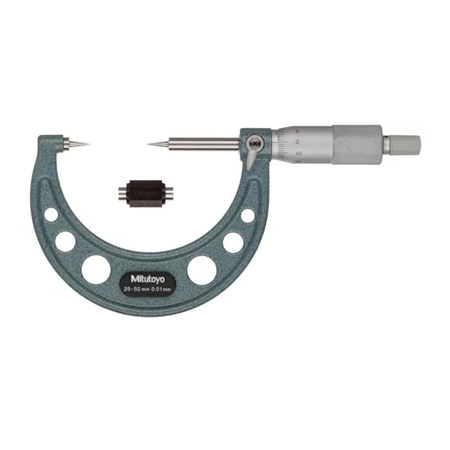

112-214 Mitutoyo Point Micrometer

112-166 Mitutoyo Point Micrometer-No Carbide (25 to 50) mm

The 112-166 pointed micrometer anvil and spline measures small groves on parts or workpieces along with keyways. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

It comes with a one-year manufacturer’s warranty.
Shop for 112-166 Point Micrometer at MRM Metrology, and save.
Buy 112-166 Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: 112-166 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimension
  • Accessories
  • Downloads
  • Calibration

○ Pointed spindle and anvil for measuring
○ Web thickness of drills, small grooves, keyways, and other hard-to-reach dimensions
○ The measuring points have approximately 0.3 mm / 0.012” radius
○ With Ratchet Stop for constant force
○ With a standard bar
○ Supplied in fitted plastic case

Range (25 to 50) mm
Graduation 0.01 mm
Accuracy ± 0.003 mm
Mass 305 g
Point 15°
Warranty One-year limited manufacturers warranty

Mitutoyo Micrometer Point

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 112-166 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
112-166 Mitutoyo Point Micrometer-No Carbide

For a quote, please email us at  [email protected]
