| ○ With a Ratchet Stop for constant force |
| ○ Supplied with zero-setting standards bar for each range |
| ○ Wide measuring range with interchangeable anvils |
| ○ Supplied in fitted wooden case |
| Range | (36 to 40)” |
| Graduation | 0.001″ |
| Accuracy | [0.00016” ± 0.00004 (L/3)”] L = Max Range (Inch) |
| Mass | 11.78 kg |
| Remarks | With 4 anvils & 4 standards |
| Flatness | 0.00004” |
| Parallelism | [0.00008” ± 0.00004 (L/4)”] L= Max range (inch) |
| Measuring Faces | Carbide tipped |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

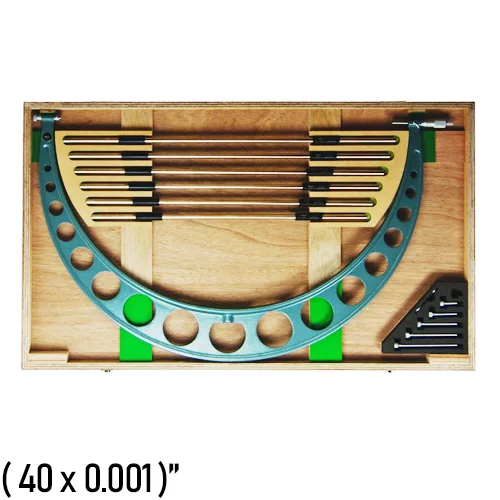

104-158 Mitutoyo Micrometer, Interchangeable Anvils
For a quote, please email us at [email protected]
