| ○ Easily process up to 50 samples at one time – the Multi-Tube Vortex Mixer can be customized for your application with six different tube racks and a post- extension kit. |

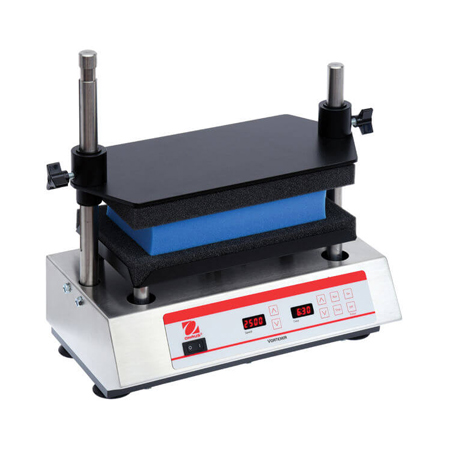

| ○ The Multi-Tube Vortex Mixers feature either an easy to clean one-piece stainless steel housing that is perfect for clean rooms or a painted steel version for a more economical option. |
| ○ For challenging samples, enhance vortex action and create a more vigorous mix with the programmable pulse mode on the digital models. Adjust the pulse-on/pulse-off time interval to customize operation. |
| Capacity | 4.5 kg |
| Speed Range | (500 to 2500) rpm |
| Control | Digital |
| Duty Rating | Continuous |
| Orbit | 3.6 mm , 0.1 “ |
| Timer | 1 s to 9999 min |
| Item Number | 30392171 |
| Warranty | One-year limited manufacturer’s warranty |
| Dimensions (L x H x W) | (241 × 406 × 384) mm , (9.5 x 16 x 15.1) “ |
| Included | |
| Detachable 3-wire cord, plug , foam rack for (50) 12 mm diameter tubes | |
| Optional | |
| 30400244 | Post Extension Kit |
| 30400238 | 10 mm Tube Rack Foam 50-Tube Capacity |
| 30400239 | 12 mm Tube Rack Foam 50-Tube Capacity |
| 30400240 | 13 mm Tube Rack Foam 50-Tube Capacity |
| 30400241 | 12 mm Tube Rack Foam 50-Tube Capacity |
| 30400240 | 13 mm Tube Rack Foam 50-Tube Capacity |
| 30400241 | 16 mm Tube Rack Foam 50-Tube Capacity |
| 30400243 | 25 mm Tube Rack Foam 28-Tube Capacity |
| 30400242 | 50 mL Tube Rack Foam 15-Tube Capacity |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL VXMTDG when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
VXMTDG Vortex Mixer
For a quote, please email us at [email protected]
