USB-ITN-C Mitutoyo USB Input Tool Direct, 06AFM380C

â—‹ Lowest price

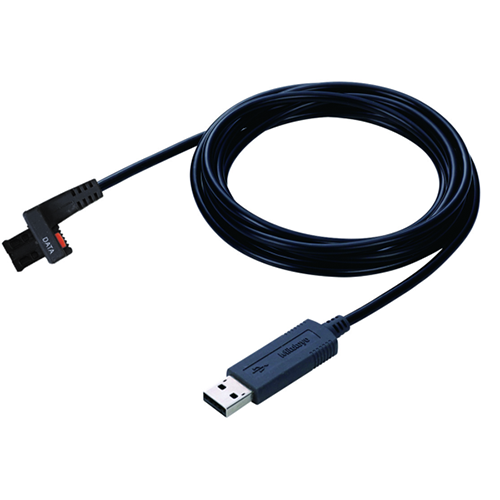

The USB-ITN-C Input Tool Direct is an SPC data cable with a data pushbutton connector that easily inputs measurement data from Mitutoyo Digimatic Micrometer Head, Caliper, Depth Gauge, Scale Unit, Exclusive Caliper with digimatic output to your PC. It incorporates a data switch, so the tool is usable regardless of whether or not the measuring instrument has a switch. Optional accessories including a Foot Switch and Gauge Selector are available.

Made in Japan and comes with a one-year manufacturer’s warranty.
Shop for Input Tool Direct at MRM Metrology and save.
Buy now for the best price in Canada.

Click on [email protected] to request a quotation.

SPC
Other Models
SKU: 06AFM380C Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

â—‹ Data collection can start immediately after connecting the measuring instrument to a computer.

â—‹ Because the input tool is automatically recognized as an *HID keyboard device (a standard Windows driver) just by connecting it to a USB port, no special software is required.

â—‹ The values displayed on the measuring instrument can be sent to the computer just by pressing the data switch.

â—‹ Using optional USB-ITPAK software enables time-saving operations and procedures that significantly improve reliability and efficiency.



Cable Length 2 m
Cable Type C (Water-proof with switch)
Output USB HID and VCP (with optional software USB-ITPAK)
Type Digimatic USB Cable
OS compatibility Windows® 2,000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®/7 (32bit,64bit), Windows® 8, 8 .1, 10 (32bit,64bit)
Remarks IP USB Input Tool Direct Cable Straight With Data Switch (2.0m), e.g. for Standard Absolute Caliper
Max connectable devices Microsoft® Windows® 2,000, XP: 100 cables, Windows® Vista®, 7, 8, 8. 1, 10: 20 cables
Output specification USB 2.0 or 1.1
Communication speed 12 Mbps (full speed)
Power supply USB bus power

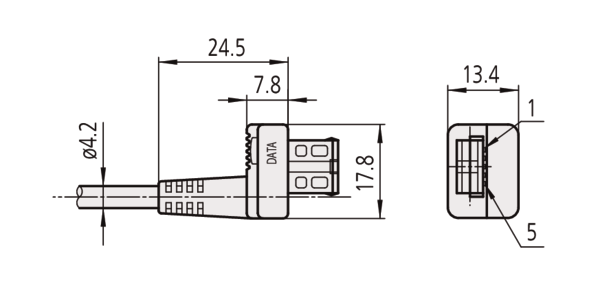

IN [MM]


Dimensions 2 m
Mass 59 g


06AGR543 USB-ITPAK Vers. 3.0 USB Dongle + Manual (Software available Online)
06AFM386 USB-ITPAK Version 2.1 Software with Dongle
06ADV384 USB Input Tool Direct Footswitch Adapter
937179T Footswitch for SPC


Repair Services

MRM provides Repair Services for the
USB-ITN-C Mitutoyo Input Tool Direct

For a quote, please email us at  [email protected]
