| â—‹ Smooth hand wheel operation |
| â—‹ Torque plate with tapped holes for grip and fixture mounting |
| â—‹ Lever operated slider for engaging and disengaging samples |
| ○ Angle dial with 2° resolution (optional digital angle indicator has 0.1° resolution, see Optional Equipment) |
| Maximum Torque | 100 in.lbf , 11.3 Nm |
| Maximum Angular Travel | No limit |
| Throat Depth | 104 mm , 4.10″ |
| Angular Rate | 12° , wheel rev. |
| Maximum Slider Travel | 394 mm , 15.5″ |
| Slider Travel Rate | 26.6 mm , 1.047″ lever rev |
| Manufacturer’s Warranty | Three years (See individual statement for further details) |
| Included Items | |
| Thumb screw for force gauges with 0.12 – 500 lbF capacities | |
| Allen wrench set | |
| Base with hardware (TST) | |
| Optional Items | |
| TST001 | Digital angle indicator for TST-Series stands, 110V |
| TST001E | Digital angle indicator for TST-Series stands, 220V |
| TSF002 | Horiz. / wall mounting kit |
| SP-2735-12 | Column extension, 305 mm / 12″ |
| SP-2735-24 | Column extension, 610 mm / 24″ |
| SP-2735-42 | Column extension, 1065 mm / 42″ |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL TST when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

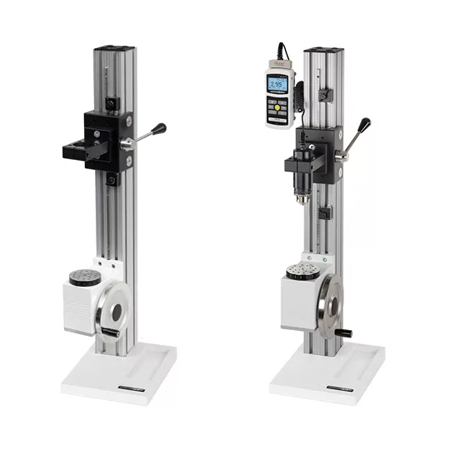

TST Mark-10 Manual Torque Test Stand
For a quote, please email us at  [email protected]
