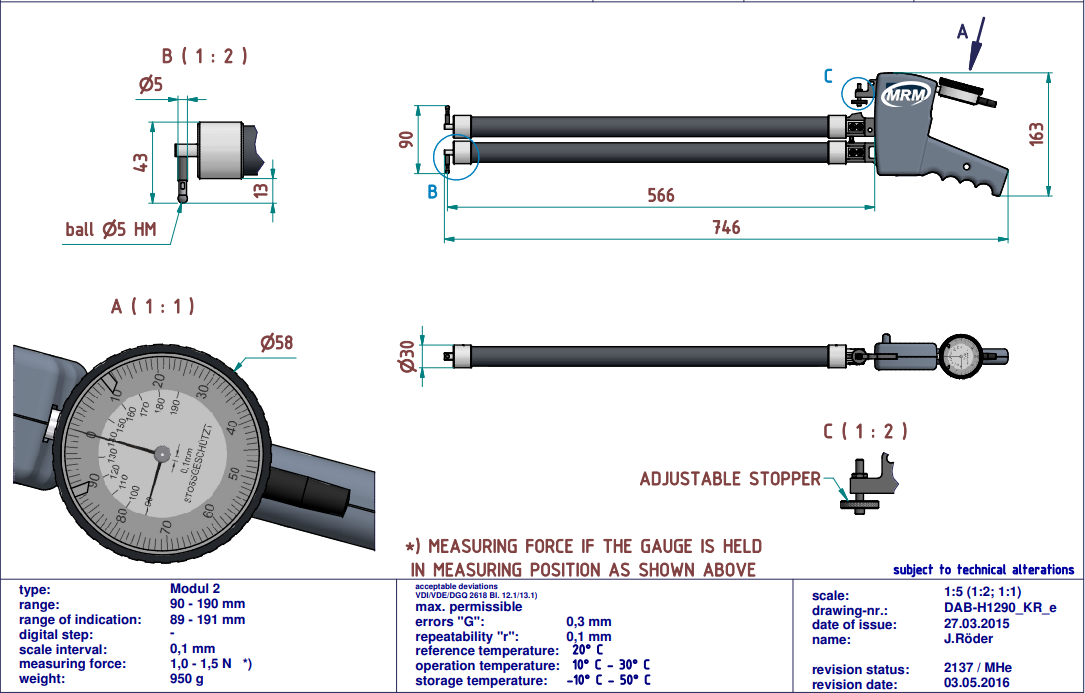

- Dimension
- Accessories
- Downloads
- Calibration
| â—‹ Internal measurement |
| Range | (90 to 190) mm |
| Graduation | 0.1 mm |
| Accuracy | 0.1 mm” |
| Range of Indication Azb | (89 to 191) mm |
| Repeatability Limit R | 0.01 mm |
| Measuring Force F min. | 1 N |
| Measuring Force F max. | 5 N |
| Type of Measuring Contact Movable | HM-Ball Ø 5 mm |
| Measuring Contact Movable Hb | 13 mm |
| Type of Measuring Contact Fixed | HM-Ball Ø 5 mm |
| Type of Measuring Contact Fixed Hf | 5 mm |
| Measuring Contact Thickness Max | 5.2 mm |
| Measuring Depth Max. L | 566 mm |
| Weight | 950 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-H1290 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

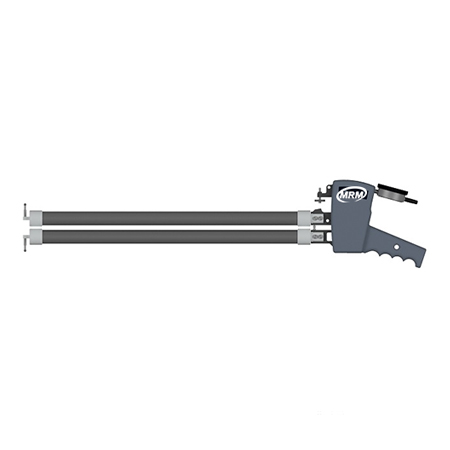

MRM-H1290 Internal Dial Caliper Gauge
For a quote, please email us at  [email protected]
