| â—‹ Indicator should be used in conjunction with a setting ring or micrometer |
| â—‹ White dial face for easier, precise measurement readings |
| â—‹ Crystal is glare-free with a scratch-resistant coating |
| â—‹ IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet |
| â—‹ Supplied in a fitted plastic case |
| Range | (5 to 15) mm |
| Graduation | 0.005 mm |
| Accuracy | ± 0.015 mm |
| Range of Indication Azb | (4.7 to 15.3) mm |
| Repeatability Limit R | 0.005 mm |
| Measuring Force F min. | 0.8 N |
| Measuring Force F max. | 1.2 |
| Type of Measuring Contact Movable | HM-Kugel Ø 0.6 mm |
| Measuring Contact Movable Hb | 2.5 mm |
| Type of Measuring Contact Fixed | HM-Ball Ø 0.6 mm |
| Type of Measuring Contact Fixed Hf | 2.5 mm |
| Measuring Contact Thickness Max | 1.2 mm |
| Measuring Depth Max. L | 35 mm |
| Weight | 160 g |
| Reference Temperature | 20°C / (-10 to 30)°C |
| Storage Temperature | (-10 to 50)°C |
| Protection Class | IP65 |
| Manufacturer’s Warranty | Two years limited manufacturer’s warranty |
209-301
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL MRM-H105 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

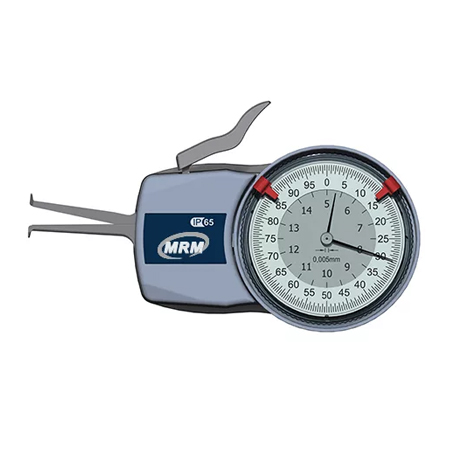

MRM-H105 Internal Dial Caliper Gauge
For a quote, please email us at  [email protected]
