MRM-DFS Force Gauge

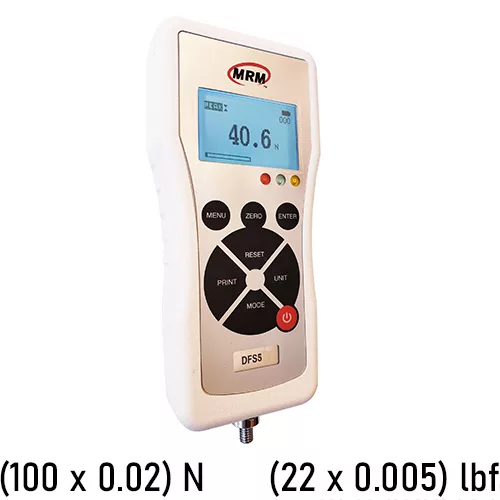

MRM-DFS100-PLUS Force Gauge, Digital

MRM-DFS are economical and good for most force testing. Rechargeable battery operated, or AC adapter operated. Compatible with common test stands and grips. It is engineered to satisfy any force testing requirement. Choose from our best valued MRM-DFS model, or high accuracy advanced features MRM-DFT model.


Range (0 to 22.480) lbf
Resolution 0.005 lbf
Accuracy ± 0.2 % of Full Scale
Other Models

Category:

Product Description

  • Features
  • Specifications
  • Models
  • Accessories
  • Downloads
  • Calibration

○ Strong metal enclosures
○ High-resolution graphical display screen, with backlighting and reverse viewing
○ Menu driven with many advance functions not found in similar class gauges
○ Both USB or RS232 communication ports come as standard
○ 500 memory records with easy transfer of data to the computer
○ Select from two software for plotting and analyzing data
○ Reliable and proven quality
○ Expand the power of testing with the computer software
○ Q-Graph. A real-time plot of force vs time. Ideal for profile viewing of individual tests
○ Q-Data. Collect and manage test data stored. Analyze and compare your reading of batch tests

Range (0 to 22.480) lbf
Resolution 0.005 lbf
Accuracy ± 0.2 % of Full Scale
A/D Rate 4,000 Hz
Effective Peak 0.1 sec
Functions Auto-off, pass/fail, reverse display and blacklight
Tension & Compression Testing Both
Overload Protection 120 % minimum
Display Type Dot Matrix LCD
Data Collection RS 232
Weight 775 g / 27 oz. 500 N below 37 oz (1060 g) 1000N and above
Operating Temperature (15 to 35)⁰C / (60 F to 95)⁰F
Load Bar Shows load percentage to minimize overloads
Warranty One year (parts and labour)

Model No. mN N kN gf ozf ozf lbf
MRM-DFS5-PLUS 5000 x 1 5 x 0.001 509.8 x 0.1 0.5098 x 0.0001 17.980 x 0.005 1.1240 x 0.0002
MRM-DFS10-PLUS 10000 x 2 10 x 0.002 1019.6 x 0.2 1.0196 x 0.0002 35.96 x 0.01 2.2480 x 0.0005
MRM-DFS20-PLUS 20000 x 5 20 x 0.005 2039.0 x 0.5 2.0390 x 0.0005 71.92 x 0.02 4.496 x 0.001
MRM-DFS50-PLUS 50 x 0.01 5098 x 1 5.098 x 0.001 179.80 x 0.05 11.240 x 0.002
MRM-DFS100-PLUS 100 x 0.02 10196 x 2 10.196 x 0.002 359.6 x 0.1 22.480 x 0.005
MRM-DFS200-PLUS 200 x 0.05 20390 x 5 20.390 x 0.005 719.2 x 0.2 44.96 x 0.01
MRM-DFS500-PLUS 500 x 0.1 0.500 x 0.0001 50985 x 5 50.98 x 0.01 1798 x 0.5 112.40 x 0.02
MRM-DFS1000-PLUS 1000 x 0.2 1 x 0.0002 101.96 x 0.02 719.2 x 0.2 224.80 x 0.05
MRM-DFS3000-PLUS 3000 x 1 3 x 0.001 305.9 x 0.01 674.4 x 0.2

Battery Rechargeable battery or AC power adapter
Battery Charge 20 hours full operation from full charge
AC Power Adapter (110 volts US plug or 220 volts EU plug)
Sharp Point Compression plate and hook
Case Plastic carrying case
Optional Test stands, popular grip assortment

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
MRM-DFS 100-PLUS Force Gauge, Digital

For a quote, please email us at  [email protected]
