M4-50 Mark-10 Digital Force Gauge, 250 N / 50 lbf / 25 kgf

FREE ISO 17025 Calibration Certificate
FREE Shipping in Ontario.

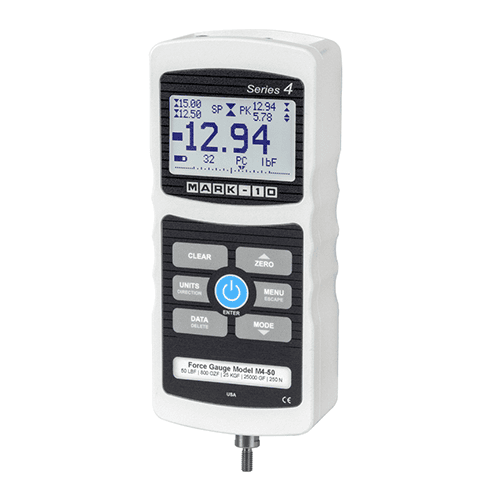

The M4-50 Digital Force Gauge is designed for tension and compression force testing applications with safe overload protection to 200% of its capacity. An analog load bar displays a graphical representation of the applied force. It has a high-speed 3,000 Hz sampling rate for fast and accurate results. This Force Gauge includes MESUR® Lite data acquisition software and has integrated set points with indicators for pass/fail status.

Made in the USA and comes with a three-year manufacturer’s warranty.
Shop for M4-50 Force Gauge at MRM Metrology and save.
Buy M4-50 now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Made in USA
SPC
ISO 17025

Grips and Attachments

Other Models

SKU: M4-50 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ High-speed 3,000 Hz sampling rate
○ USB, RS-232, Mitutoyo, and analog output
○ Large backlit graphic display
○ 50-point data memory with statistics (min, max, mean, standard deviation) and outputs
○ Live load bar graph with set point markers
○ Programmable set points, with alarms and outputs
○ Peak readings and set points always displayed
○ 5 selectable units of measurement
○ Configurable audio alarms and key tones
○ Password protection, configurable for individual keys and calibration
○ SPC output

Capacity x Resolution 250 x 0.1 N , 50 x 0.02 lbf , 25 x 0.01 kgf , 800 x 0.5 ozf , 25000 x 10 gf
Accuracy ± 0.2% of Full Scale
Sampling Rate 3,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Backlight On Up to 7 hours of continuous use
Backlight Off Up to 24 hours of continuous use
Units of Measurement N , lbf , kgf , ozf , gf
USB / RS-232 Configurable up to 115,200 baud
Mitutoyo (Digimatic) Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog ± 1 VDC, ± 0.25% of Full Scale at capacity
General Purpose Three open drain outputs, one input
Set Points Three open drain lines
Safe Overload Protection 200% of Full Scale (Display shows “OVER” at 110% and above)
Weight 0.45 kg , 1.0 lb
Environmental Requirements (40 to 100)°F, max. 96% humidity, Non-condensing
Warranty Three years limited manufacturer’s warranty

Capacity x Resolution


Model lbf ozf kgf gf N kN mN
M4-012 0.12 x 0.00005 2 x 0.0001 – 50 x 0.02 0.5 x 0.0002 – 500 x 0.2
M4-025 0.25 x 0.0001 4 x 0.002 – 100 x 0.05 1 x 0.0005 – 1000 x 0.5
M4-05 0.5 x 0.0002 8 x 0.005 – 250 x 0.1 2.5 x 0.001 – 2500 x 1
M4-2 2 x 0.001 32 x 0.02 1 x 0.0005 1000 x 0.5 10 x 0.005 – –
M4-5 5 x 0.004 80 x 0.05 2.5 x 0.001 2500 x 1 25 x 0.01 – –
M4-10 10 x 0.005 160 x 0.1 5 x 0.002 5000 x 2 50 x 0.02 – –
M4-20 20 x 0.01 320 x 0.2 10 x 0.005 10000 x 5 100 x 0.05 – –
M4-50 50 x 0.02 800 x 0.5 25 x 0.01 25000 x 10 250 x 0.1 – –
M4-100 100 x 0.05 1600 x 1 50 x 0.02 50000 x 20 500 x 0.2 – –
M4-200 200 x 0.1 3200 x 2 100 x 0.05 – 1000 x 0.5 1 x 0.0005 –
M4-500 500 x 0.2 8000 x 5 250 x 0.1 – 2500 x 1 2.5 x 0.001 –


Model Load Cell Thread
M4-012 to M4-100 #10-32M UNF

IN [MM]


Included Items
G1024 Extension Rod
G1038 Hook
G1026 Cone
G1025 Chisel
G1027 V-Groove
G1029 Flat
G1039 Coupling
12-1049 Carrying case
09-1165 USB cable
AC1030 AC Power Adapter
08-1026 Battery (Installed in Force Gauge)
Optional Items
15-1004 MESUR™gauge software
09-1163 Cable, Series 5 to RS-232
09-1165 Spare USB cable
08-1026 Spare rechargeable battery
AC1030 Spare AC adapter, 110V
AC1031 Spare AC adapter, 220V EUR
AC1032 Spare AC adapter, 220V UK
AC1035 Spare AC adapter, 220V AUS
AC1052 Mounting plate kit

Accessory Specific* M4-012 to M4-20 M4-50 to M4-100 M4-200 to M4-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling – G1039 G1037

All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or ‘A’ for Australian plug (220V). Example: M4-50E, M4-200U, M4-500A

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL M4-50 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
M4-50 Mark-10 Digital Force Gauge

For a quote, please email us at  [email protected]
