Inline Adapters for Force Gauges

Product Description

These adapters allow a force gauge to be used in inline pull testing or weighing applications. A 5/16-18 threaded hole at each end is axially aligned with the load cell shaft in the force gauge, for mounting hooks or other attachments. Three adapters are offered, accommodating Mark-10 force gauges with capacities up to 500 lbF (2.5 kN).

Solid Models

Hooks
Model G1035 mounts directly to AC1073. Other sizes are available.
Clevis Grip
Spring loaded pin provides a closed connection to a chain, spring, or other object.

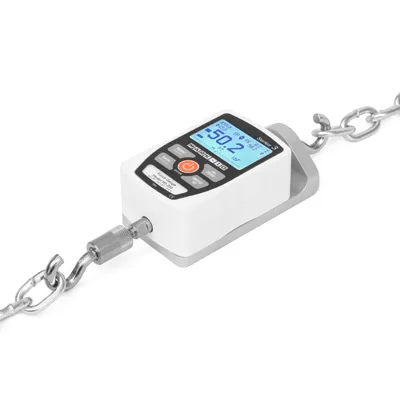

The inline adapters are shipped with the following accessories (AC1073-3 is shown at left):
(4) Thumb screw for force gauge
(1) 5/16-18 male/male stud with jam nuts

Model A B C D E F G H
AC1073-1 1.47
[38.1] 0.74
[18.8] 4.67
[118.6] 4.27
[24.1] 3.27
[83.1] 1.87
[47.5] 0.47
[12.0] 0.65
[16.5]
AC1073-2 1.47
[38.1] 0.74
[18.8] 8.31
[211.1] 7.91
[38.1] 4.97
[126.3] 2.72
[69.1] 0.47
[12.0] 0.65
[16.5]
AC1073-3 1.85
[47.0] 1.12
[28.4] 6.46
[25.4] 6.06
[154.0] 4.97
[126.3] 2.72
[69.1] 0.47
[12.0] 1.03
[26.2]

Part No. Description
AC1073-1 Inline adapter, Series 3/2 force gauges
AC1073-2 Inline adapter, Series 7/5*/4 force gauges
AC1073-3 Inline adapter, Series E force gauges

* Up to 500 lbF (2.5 kN) capacities
