The HW-200KCP A&D Platform Scale is designed to integrate easily into your weighing process. It offers a broad range of solutions for your checkweighing, parts counting or quality assurance applications. Raise your throughput, increase process security and improve your product and delivered quality.
Made in Japan and comes with a two-year manufacturer’s warranty.
Shop for HW-200KCP Platform Scale at MRM Metrology, and save.
Buy HW-200KCP Scale now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| â—‹ High-speed weighing in less than 1 second to increase your work efficiency |
| â—‹ Quickly determine if a weight is below, within or above a target with built-in, tricolor LED comparator lights |
| â—‹ Large, clear backlit liquid crystal display (LCD) shows all important information at a glance even in dimly lit areas |
| â—‹ 10-digit alphanumeric keypad simplifies setting comparator limits and programming |
| â—‹ Legal for Trade options to meet industry compliance |
| â—‹ Multiple built-in functions to streamline your weighing processes including: Piece Counting, Accumulation and Checkweighing |
| â—‹ Key Lock Function limits operators to the minimum required keys, preventing accidental changes and errors |
| â—‹ Meet GLP/GMP standards with seamless data capture with built-in printer (applicable models) |
| â—‹ Multiple connectivity capabilities including bi-directional interface as well as USB and comparator relay |
| â—‹ IP65 rated base and stainless steel platform allow for washdown weighing and is easy-to-clean |
| â—‹ Dependable operation anywhere with the ability to run off of four standard D batteries |
| Capacity | 220 kg , 500 lb |
| Readability | 0.02 kg , 0.05 lb |
| Linearity | ± 0.04 kg |
| Repeatability (std. deviation) | 0.04 kg |
| Weighing units of Measurements | kg , lb , oz , ozt |
| Display | 7 Segment LCD (18.6 mm Height) with Backlight + Analog Sweep Display with Backlight |
| Display update | 10 Times per Second |
| Operating temperature | (–10 to 40) °C , (14 to 104) °F , 85% R.H. or less (no condensation) |
| Power supply | AC adapter |
| Pan Size | (390 × 530) mm , (15.4 × 20.9) “ |

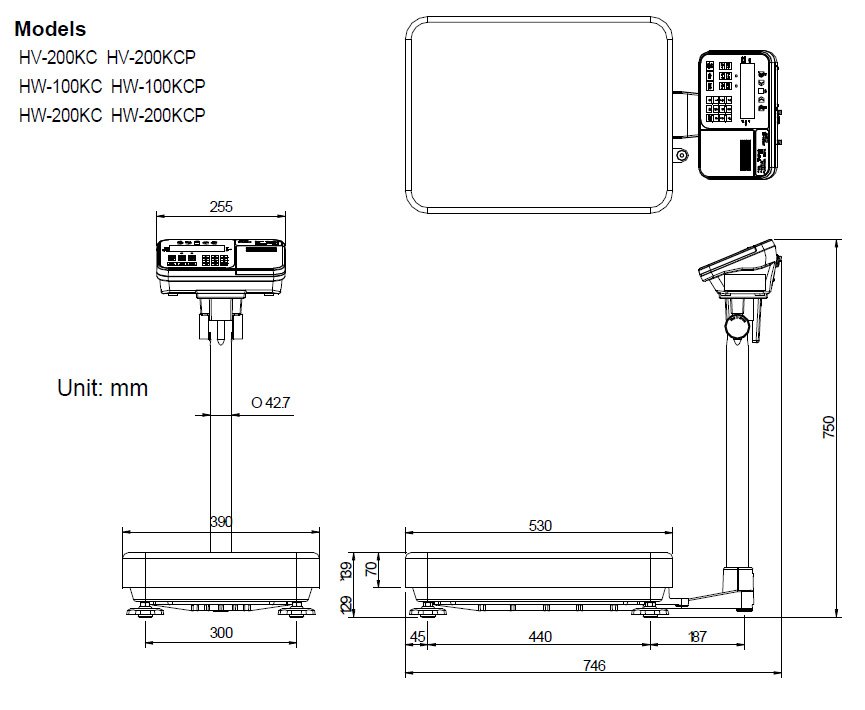

| Dimensions (W x D x H) | (390 × 712 × 773) mm , (15.4 × 28.0 × 30.4) in |
| Weight (approx.) | 18 kg , 40 lb |
| Standard | |
| AC adapter, Display Cover and Manual, Hex key to secure column to base | |
| Optional | |
| HVW-02CB | USB interface |
| HVW-03C | RS-232C interface |
| HVW-04C | Comparator/Setpoint Relay Outputs w/ RS-232C interface |
| HVW-08C | Extension cable (5m) |
| HVW-11C | Wall-mount bracket |
| HVW-13 | Large roller conveyor for 100/200 kg models |
| HVW-14 | Medium roller conveyor for 60 kg models |
| HV/W-17LSC | Swivel/Lock Caster |
| TB:662 | AC Adapter (120V) replacement or spare |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL HW-200KCP when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
HW-200KC A&D Platform Scale
For a quote, please email us at  [email protected]
