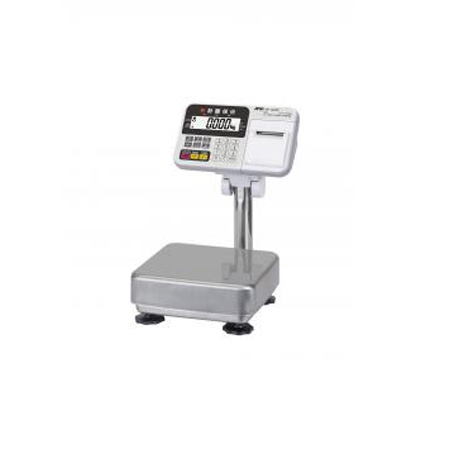

The HV-15KC A&D High Resolution Platform Scale is designed to integrate easily into your weighing process. It offers a broad range of solutions for your checkweighing, parts counting or quality assurance applications. Raise your throughput, increase process security and improve your product and delivered quality.
Made in Japan and comes with a two-year manufacturer’s warranty.
Shop for HV-15KC Platform Scale at MRM Metrology, and save.
Buy HV-15KC Scale now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.
| â—‹ The scales use a back lit liquid crystal display to enable viewing in dim light |
| â—‹ The comparator function compares the displayed weight value with the upper limit value (HI) and the lower limit value (LO) and displays the result. |
| â—‹ The optional RS-232C serial interface, USB interface or comparator relay output can be installed to the scale with up to three units |
| Capacity | (3 , 6 , 15) kg , (6 , 15 , 30) lb |
| Readability | (0.001 , 0.002 , 0.005) kg , (0.002 , 0.005 , 0.01) lb |
| Linearity | ± (0.001 , 0.002 , 0.005) kg |
| Repeatability (std. deviation) | (0.001 , 0.002 , 0.005) kg |
| Weighing units of Measurements | kg , lb , oz , ozt |
| Display | 7 segment LCD (Character height: 25 mm) with backlight , 3-color, 5-step LED comparator lights |
| Display update | 10 Times per Second |
| Operating temperature | (–10 to 40) °C , (14 to 104) °F 85% R.H. or less (no condensation) |
| Power supply | AC adapter or four D batteries (approx. 1200 hours using alkaline batteries, with display backlight and LED comparator lights OFF |
| Pan Size | (250 x 250) mm , (9.8 x 9.8) “ |
| Legal for Trade | MC, NTEP |

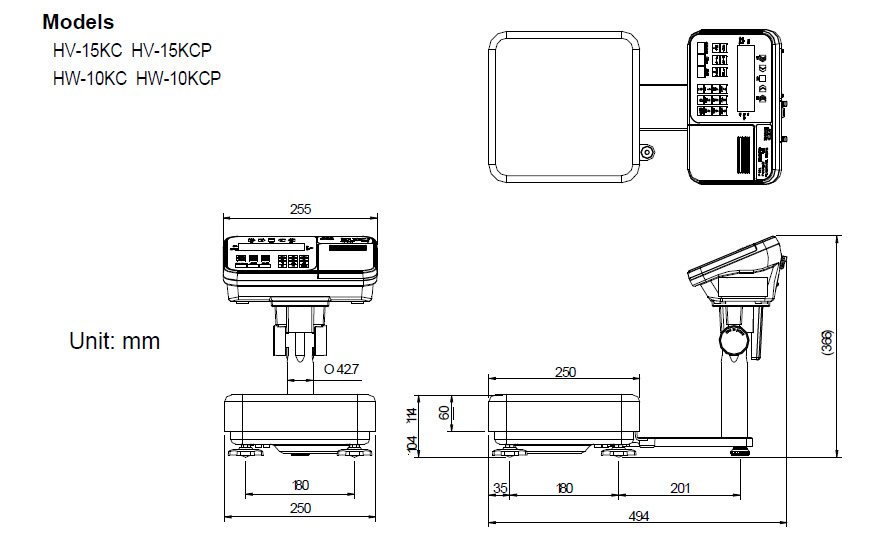

| Dimensions (W x D x H) | (275 × 474 × 368) mm , (10.8 × 18.7 × 14.5) in |
| Weight (approx.) | 6 kg , 13.2 lb |
| Standard | |
| AC adapter, Display Cover and Manual, Hex key to secure column to base | |
| Optional | |
| HVW-02CB | USB interface |
| HVW-03C | RS-232C interface |
| HVW-04C | Comparator/Setpoint Relay Outputs w/ RS-232C interface |
| HVW-08C | Extension cable (5m) |
| HVW-11C | Wall-mount bracket |
| HVW-13 | Large roller conveyor for 100/200 kg models |
| HVW-14 | Medium roller conveyor for 60 kg models |
| HV/W-17LSC | Swivel/Lock Caster |
| TB:662 | AC Adapter (120V) replacement or spare |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL HV-15KC when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
HV-15KC A&D High Resolution Platform Scale
For a quote, please email us at  [email protected]
