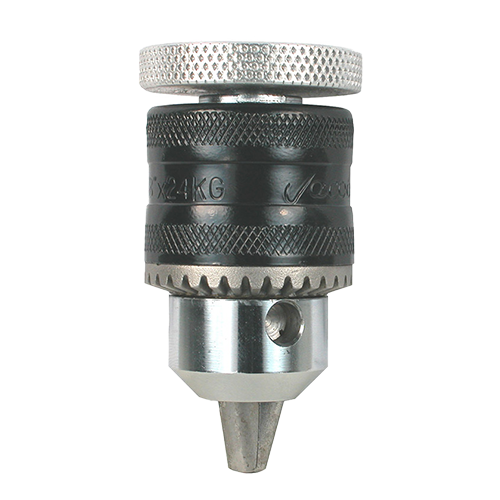

G1010 Mark-10 Jacobs Chuck Pin Vise Grip

The G1010 grip is suitable for holding round samples such as wire or tubing. Three sizes are available. Compatibile with force gauges, load cells, and test stands.

Made in the USA and comes with a three year limited manufacturer’s warranty.
Shop for G1010 at MRM Metrology.

SKU: G1010 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ Jacobs chuck secures bits, attachments, and samples
○ Select from three chuck sizes
Capacity 150 N ; 30 lbf
Weight 0.16 kg ; 0.35 lb
Chuck Key Size KGA
HS Code 9024800000
Country of Origin USA
Model ØA
G1010-1 (0.7 to 6.3) mm ; (0.028 to 0.025)”
G1010 (1.6 to 9.5) mm ; (0.062 to 0.375)”
G1010-2 (2.0 to 12.7) mm ; (0.078 to 0.5)”

Swivel Adapter Swiveling action provides proper sample alignment in pull testing applications
Eye end Adapters Allow for quick grip installation and removal, and prevent grip rotation
Mount to common test frames, load cells, and force gauges
