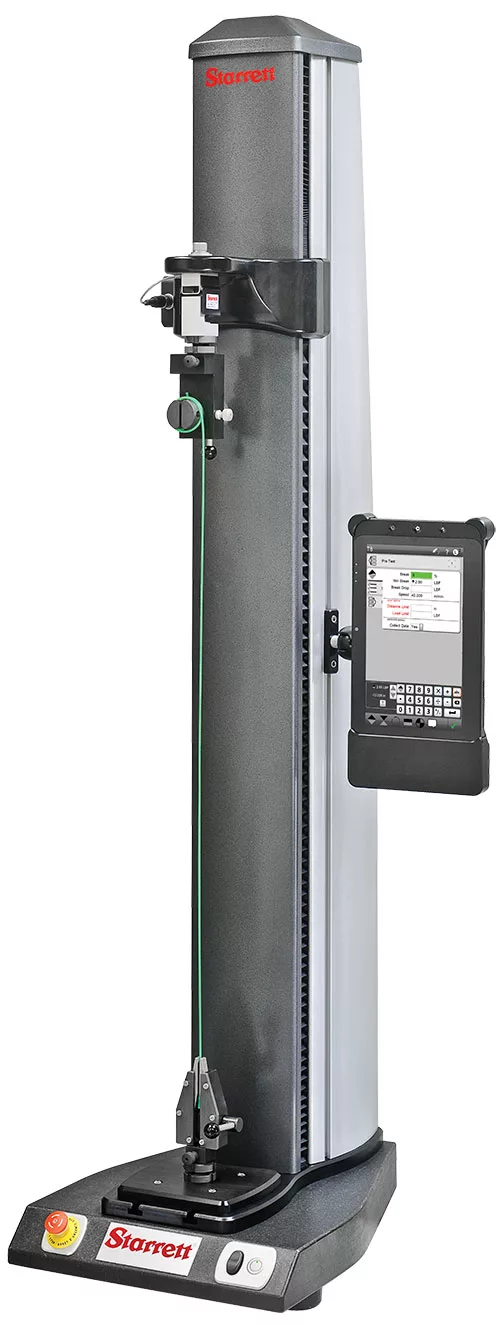

FMS-1000-L2 Force Measurement System

The Starrett FMS1000 Series is a single-column force measurement testing system optimized for high-volume production and quality control testing. The FMS1000 frame has a 1000N (225lbf) testing capacity ideal for tensile or compressive testing. The system includes the test frame, controller & software. The controller features a Windows and Android operating system with high resolution color, multi-touch 10-inch display. The L2 controller is Wi-Fi and Bluetooth compatible with two USB 2.0 ports. The L2 software features test templates that require minimal operator setup in order to perform routine test methods such as push/pull to limit, push/pull to break and for determining peak results. For more complex, multi-stage test methods or methods that must comply with international testing standards, the L2 software features our exclusive Test Builder application.


Capacity: 100 kgf, 1000 N, 225 lbf
Accuracy: Load Cell Dependent



Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Other

Features
  • Turnkey 1000 N (225 lbf) Force Measurement System includes Testing Frame, L2 Plus Controller with L2 Plus Force Measurement Software
  • Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
  • Perform Basic Force Test Methods Quickly with Easy-to-Use Test Templates
  • Perform Complex Multi-stage Testing Using Advanced Test Builder Application
  • Compact Footprint (15″W x 20.25″D)
  • Conforms to All Relevant European Standards and Carries CE Mark

Specifications
Frame Type Single Column
User Interface Tablet PC
Load Capacity 100 kgf, 1000 N, 225 lbf
Maximum Speed 1525 mm/min, 60″/min
Minimum Speed 0.02 mm/min, 0.001″/min
Return Speed 1525 mm/min, 60″/min
Total Crosshead Travel 760 mm, 30″
Total Vertical Test Space 953 mm, 37.5″
Crosshead Throat Depth 108 mm, 4.25″
Accuracy Seep ± 0.2%
Accuracy Load Cell Dependant
Load Cell Sensor Models Models FLC Series, MLC Series, or ULC Series
USB I/O I/O Standard
Power Single Phase Voltage (Vac) ± 10% 200, or 240
Operating Temperature 50 to 100F, (10 to 38F)
Humidity 10 to 90%, non-condensing
CE Compliant Yes
Dimensions
Height 1270 mm, 50″
Width 381 mm, 15″
Depth 514 mm, 20.25″
Weight 77 kg, 170 lbs
