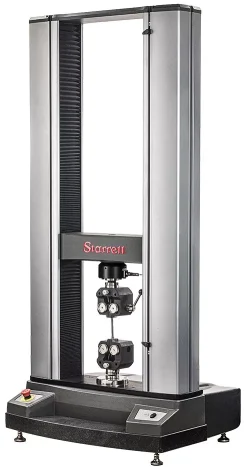

FMD-50K-L2P Force Measurement System

The Starrett FMD-50K-L2P is a dual-column force measurement system optimized for high-volume production and quality control testing. The FMD-50K-L2P frame has a 50kN (11,250lbf) testing capacity ideal for tensile or compressive testing. The system includes the test frame, controller & software. The controller features a Windows operating system with high resolution color, multi-touch display, Wi-Fi, Bluetooth and USB 2.0 port(s). The L2 Plus software features analysis tools to measure and display results on a single graph. Once this is complete, those results are automatically measured and placed on all of the test runs within your batch. Display full graphs, split graphs with data tables or as a data table complete with statistical calculations or tolerance results.


Capacity: 5000 kgf, 50 kN, 11250lbf
Accuracy: Load Cell Dependent



Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Other

Features
  • Turnkey 50 kN (11225lbf) Force Measurement System includes Testing Frame, L2 Plus Controller with L2 Plus Force Measurement Software
  • Easily Perform Tension, Compression, Flexural, Shear, Peel and COF Testing
  • Perform Complex Multi-stage Testing Using Advanced Test Builder Application
  • Compact Footprint (31″W x 29″D)
  • Use the Analysis Tools to Measure and Display Results on a Single Graph

Specifications
Frame Type Dual Column
User Interface All-In-One PC
Load Capacity 5000 kgf, 50 kN, 11225 lbf
Maximum Speed 762 mm/min, 30″/min
Minimum Speed 0.001 mm/min, 0.00004″/min
Return Speed 722 mm/min, 30″/min
Total Crosshead Travel 1111 mm, 43.75″
Total Vertical Test Space 1220 mm, 48″
Crosshead Throat Depth 424 mm, 16.7″
Accuracy Load Cell Dependant
Load Cell Sensor Models Models FLC Series, MLC Series, or ULC Series
USB I/O I/O Standard
Power Single Phase Voltage (Vac) ± 10% 200, or 240
Operating Temperature 50 to 100F, (10 to 38F)
Humidity 10 to 90%, non-condensing
CE Compliant Yes
Dimensions
Height 1270 mm, 50″
Width 381 mm, 15″
Depth 514 mm, 20.25″
Weight 77 kg, 170 lbs
