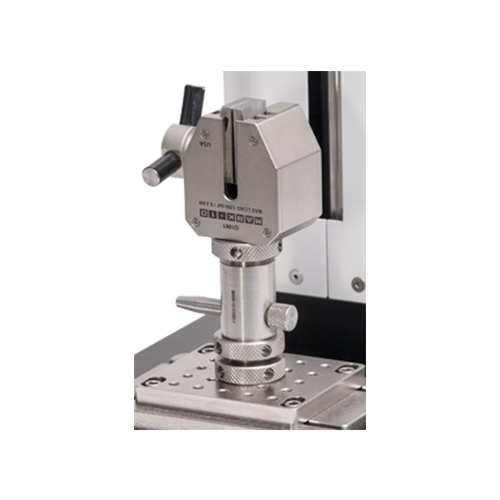

Eye end adapters

Product Description

These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames, available as kits or individual components. They prevent grip rotation and allow for quick removal and installation.
15.8 mm dia. sizing and a range of thread sizes are available to suit most common test frames, load cells, grips, and force gauges. Refer to the Compatibility table at the bottom of this page for convenient quick reference.

Ordering Information Kits Individual Components

The illustrations below depict typical mounting configurations:
Load Cell / Test Frame Configuration Force Gauge Configuration

Part No. Description
1 G1079 Lock ring, 3/4-16
2 G1081
G1081-1
G1081-2
G1081-3 Eye end, #10-32M
Eye end, 5/16-18M
Eye end, 1/2-20M
Eye end, 1/4-28M
3 G1080 Anchor pin
4 G1083
G1083-1
G1083-2 Eye end adapter, #10-32M
Eye end adapter, 5/16-18M
Eye end adapter, 1/2-20M
5 G1084
G1084-1
G1084-2 Washer, 0.20 ID
Washer, 0.32 ID
Washer, 0.51 ID
6 G1082
G1082-1 Eye end, #10-32F
Eye end, 5/16-18F
G1088 Spanner wrench (not shown)

G1084-X Jam Washers

Model No. ØA Weight
lb [kg]
G1084 0.20
[5.1] 0.03
[0.01]
G1084-1 0.32
[8.2] 0.03
[0.01]
G1084-2 0.51
[12.9] 0.03
[0.01]

G1079 Lock Ring

Weight
lb [kg]
0.07
[0.03]

G1081-X Eye Ends

Model No. A Thread Weight
lb [kg] Capacity
lbF [kN]
G1081 1.82
[46.2] #10-32 0.13
[0.06] 200
[1]
G1081-1 1.88
[47.8] 5/16-18 0.14
[0.06] 500
[2.5]
G1081-2 2.02
[51.3] 1/2-20 0.15
[0.07] 2,000
[10]
G1081-3 1.87
[47.5] 1/4-28 0.13
[0.06] 200
[1]

G1082-X Eye Ends

Model No. Thread Weight
lb [kg] Capacity
lbF [kN]
G1082 #10-32 0.13
[0.06] 200
[1]
G1082-1 5/16-18 0.14
[0.05] 500
[2.5]

G1083-X Eye Ends

Model No. A Thread Weight
lb [kg] Capacity
lbF [kN]
G1083 2.10
[53.3] #10-32 0.26
[0.12] 200
[1]
G1083-1 2.16
[54.9] 5/16-18 0.26
[0.12] 500
[2.5]
G1083-2 2.30
[58.4] 1/2-20 0.28
[0.13] 2,000
[10]

G1080 Anchor Pin

Weight
lb [kg]
0.06
[0.03]

G1088 Spanner Wrench

Individual Components
Model No. Description
G1079 Lock ring
G1080 Anchor pin
G1081 Eye end, #10-32M
G1081-1 Eye end, 5/16-18M
G1081-2 Eye end, 1/2-20M
G1081-3 Eye end, 1/4-28M
G1082 Eye end, #10-32F

G1082-1 Eye end, 5/16-18F
G1083 Eye end adapter, #10-32M
G1083-1 Eye end adapter, 5/16-18M
G1083-2 Eye end adapter, 1/2-20M
G1084 Washer, 0.20 ID
G1084-1 Washer, 0.32″ ID
G1084-2 Washer, 0.51″ ID
G1088 Spanner wrench

Base / Load Cell Adapter Kits Grip Adapter Kits Load Cell / Force Gauge
Adapter Kits
AC1047 / AC1047-1 /
AC1047-2 / AC1047-3 AC1046 / AC1046-1 / AC1046-2 AC1045 / AC1045-1 / AC1045-2

Consist of: Consist of: Consist of:
G1081 / G1081-1 / G1081-2 /
G1081-3 eye end – qty. 1
G1080 anchor pin – qty. 1
G1079 lock ring – qty. 2
G1083 / G1083-1 / G1083-2
eye end adapter – qty. 1
G1079 lock ring – qty. 1
G1082 / G1082-1 / G1081-2
eye end – qty. 1
G1084 / -1 / -2 washer – qty. 1
G1079 lock ring – qty. 2
G1080 anchor pin – qty. 1

Kits
Model No. Description Compatibility
AC1047 Base / load cell adapter kit, #10-32M – Test stand bases w/ #10-32 mounting
– Series R03 load cells
AC1047-1 Base / load cell adapter kit, 5/16-18M – Test stand bases w/ 5/16-18 mounting
AC1047-2 Base / load cell adapter kit, 1/2-20M – Test stand bases w/ 1/2-20 mounting
– Models MR01-500 / -750 / -1000 / -1500 / -2000 load cells
AC1047-3 Base / load cell adapter kit, 1/4-28M – Models MR01-50 / -100 / -200 load cells
AC1046 Grip adapter kit, #10-32M – Grips with #10-32 mounting
AC1046-1 Grip adapter kit, 5/16-18M – Grips with 5/16-18 mounting
AC1046-2 Grip adapter kit, 1/2-20M – Grips with 1/2-20 mounting
AC1045 Force gauge adapter kit, #10-32F – Force gauges up to 100 lbF capacity
AC1045-1 Force gauge adapter kit, 5/16-18F – Force gauges with 200, 300, and 500 lbF capacities
AC1045-2 Force gauge adapter kit, 1/2-20M – Models M5-750 – M5-2000 force gauges
