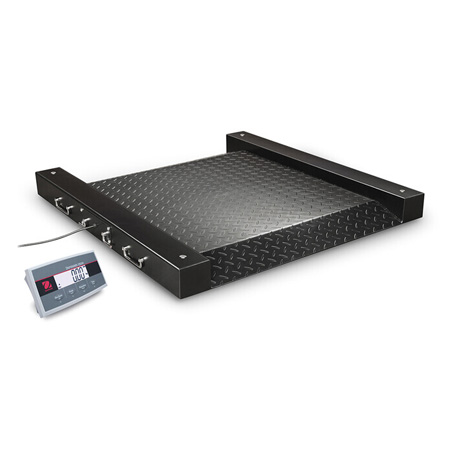

The DFD25P1000E1S Defender 2500 Drum Scale is a durable portable floor scale designed for industry applications.
The Defender 2500 features a powder coated carbon steel treaded platform, built-in front/back access ramps, four load cells, and the new i-DT25P indicator for clear display of weighing results. Includes folding stainless steel cleats to store the indicator cord.
For quick transport, the base can be rotated on its side using the stainless steel handles and moved around the shop floor using the two integrated wheels.
It comes with a one-year manufacturer’s warranty. Shop for DFD25P1000E1S Drum Scale at MRM Metrology, and save. Buy DFD25P1000E1S Scale now for the best price.
Email us for the lowest price. Click on [email protected] to request a quotation.

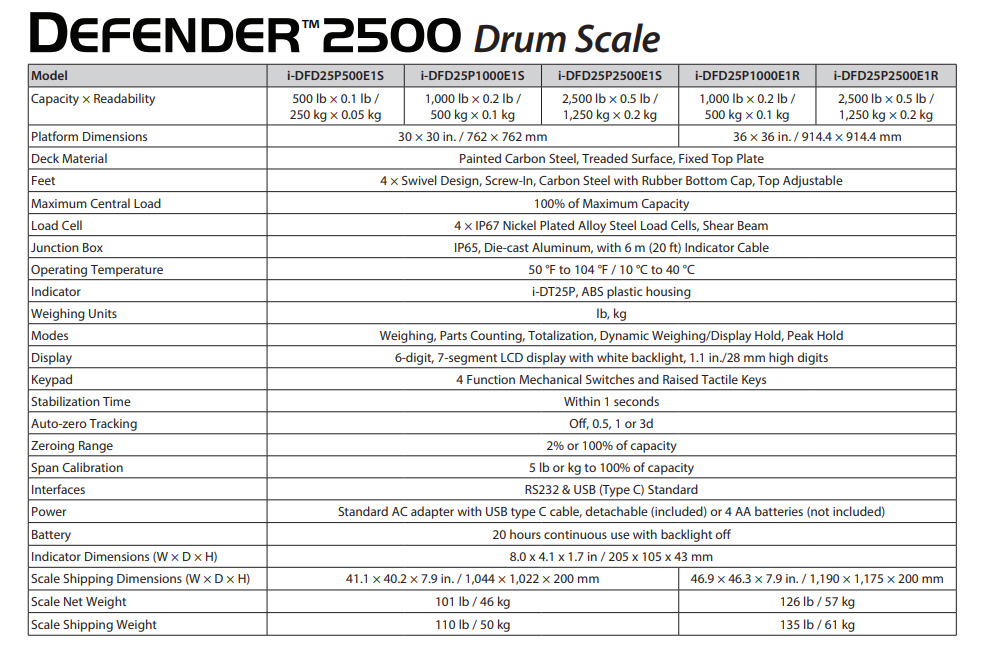

| Applications | Weighing, Parts Counting, Totalization, Dynamic Weighing/Display Hold, Peak Hold |
| Display | 6-digit, 7-segment LCD display with white backlight, 28 mm high digits |
| Operation | Standard AC adapter with USB type C cable, detachable (included) or 4 AA batteries (not included) |
| Communication | Easy access communication ports including standard RS232 and USB type C |
| Construction |
ConstructionABS housing indicator and powder-coated steel mounting bracket, black powder coated steel treaded platform, IP65 aluminum junction box, 4 LBZ4 IP67 OIML R60 alloy steel load cells with top height adjustment, front and back access ramps |
| Design Features | Selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto-off, auto tare. Alloy steel feet with top height adjustment. Painted and stainless steel floor stands (available as accessories) |
| Maximum Capacity | 500 kg , 1000 lb |
| Readability | 0.1 kg , 0.2 lb |
| Item Number | 30936456 |
| Platform Size | (30 x 30) ” , (762 x 762) mm |
| Battery Life | 20 hours continuous use with backlight off |
| Platform Construction | Painted Steel Diamond Plate |
| Protection Rating | Not Applicable |
| Units of Measurement | lb, kg |
| Power | Standard AC adapter with USB type C cable, detachable (included) or 4 AA batteries (not included) |
| Working Environment | (14° – 104) °F, 85%RH, non-condensing ((-10 – 40) °C , 85%RH, non-condensing) |
| Warranty | One-year limited manufacturer’s warranty |
| Alternative | i-DFD25P1000E1S |
| Dimensions (L x H x W) | (40.4 x 4 x 37.9) ” , (1,024 x 100 x 962) mm |
| Net Weight | 46 kg , 101 lb |
| 30472063 | Auxiliary display AD7-MD |
| 30064203 | Printer, Impact, SF40A, AM |
| 80500525 | Cable RS232 IBM 9P Male-to-Female |
| 80251992 | Printer, Thermal, STP-103, US |
| 30692384 | DB9 Adapter Male to Male |
| 30531244 | Floor Stand 990mm/39in Painted |
| 30539553 | Floor Scale Column Kit SST |
| 30304102 | Interface Kit, RS232-Ethernet |
| 30304101 | Interface Kit, RS232-USB |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc. â—‹ Use CAL DFD25P1000E1S when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the DFD25P1000E1S Ohaus Drum Scale
For a quote, please email us at  [email protected]
