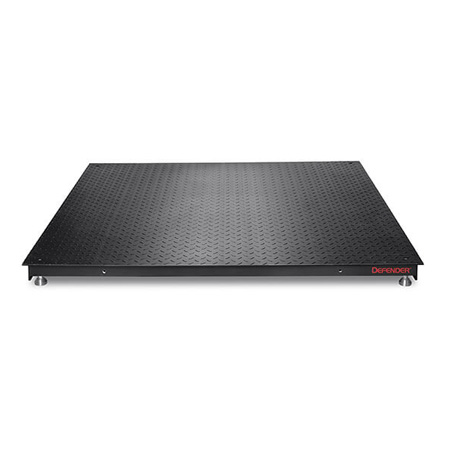

The DF5000B1X Defender 3000 Floor Platforms meet dry weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance.
The DF5000B1X Defender 3000 Series floor platforms offer a unique combination of value and dependability that your company can rely on. Ramps and mounting plates are available.
It comes with a one-year manufacturer’s warranty.
Shop for DF5000B1X Floor Scale at MRM Metrology, and save.
Buy DF5000B1X Scale now for the best price.
Email us for the lowest price.
Click on [email protected] to request a quotation.

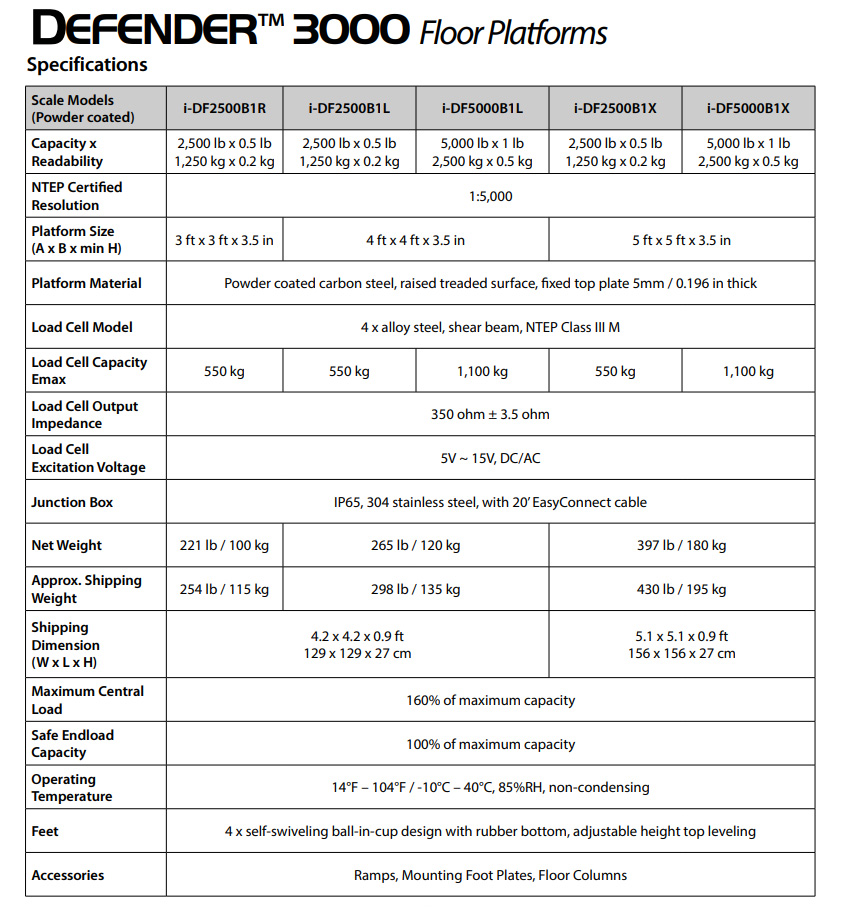

| Applications | N/A |
| Display | N/A |
| Operation | N/A |
| Communication | N/A |
| Construction | 5 mm/0.196 in. fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available |
| Design Features | Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories) |
| Maximum Capacity | 2500 kg , 5000 lb |
| Readability | 0.5 kg , 1 lb |
| Item Number | 30716498 |
| Platform Size | (5 x 5) ft , (1,524 x 1,524) mm |
| Platform Construction | Painted Steel Diamond Plate |
| Protection Rating | IP65 |
| Units of Measurement | Metric Tons , Kilogram , Pound |
| Working Environment | (14° – 104) °F, 85%RH, non-condensing ((-10 – 40) °C , 85%RH, non-condensing) |
| Warranty | One-year limited manufacturer’s warranty |
| Alternative | i-DF5000B1X |
| Dimensions (L x H x W) | 5 ft x 3.5 in x 5 ft , (1,524 x 90 x 1,524) mm |
| Net Weight | 180 kg , 397 lb |
| 30531244 | Floor Stand 990mm/39in Painted |
| 30539553 | Floor Scale Column Kit SST |
| 72198344 | Foot plate kit Painted VE/DF-B1 |
| 30812889 | Ramp 36″, CS, for i-DFxxxB1R |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL DF5000B1X when requesting calibration services from MRM Metrology.
MRM provides Calibration and Repair Services for the
DF5000B1X Ohaus Floor Scale Platforms
For a quote, please email us at  [email protected]
