| ○ Handheld Spectrometer for Professional Photographers, Film & Entertainment, Broadcasting |

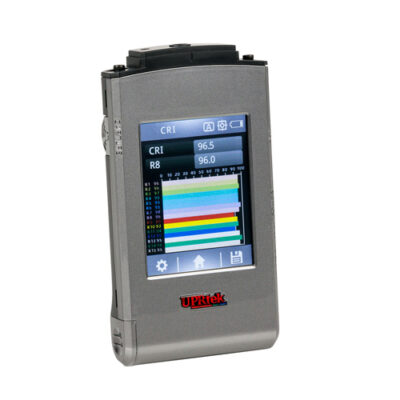

| ○ The CV600 Spectral Colour Meter puts light spectrum data at your fingertips, enabling you to capture in-time readings without the need of a PC |
| ○ The unit’s advanced sensors measure illuminance, chromaticity, dominant wavelength, and the spectral distribution of all visible light (not Infrared or Ultra Violet) |
| ○ Screen data is rendered as crisp, colorful graphics |
| Sensor | CMOS Linear Image Sensor |
| Wavelength Range | (380 to 780) nm |
| Wavelength Data Increment | 1 nm |
| Wavelength Reproducibility | ± 1 nm *1 |
| Spectral Bandwidth | Approximately 9 nm (half bandwidth) |
| Measurement Range | (70 to 70,000) lx |
| Illuminance Accuracy | ± 3% |
| Illuminance Repeatability | 0.5% |
| Color Accuracy | ± 0.0025 in CIE 1931 x,y |
| Color Repeatability (2σ) | x y: 0.0005 (30 to 100,000 lx) / x y: 0.0015 (5 to 30 lx) |
| CCT Accuracy | ± 2% |
| CRI Accuracy @ Ra | ± 1.5% |
| Stray Light | -25 dB max. *3 |
| Integration Time Range | 100us to 1,000 ms |
| Digital Resolution | 16 bits |
| Flicker | |
| Measurement Range | 5 to 100,000 lx |
| Sampling Rate | 100k sample/sec |
| Frequency Range | (5 to 50,000) Hz |
| Frequency Resolution | (2 to 3) Hz |
| Flicker Accuracy | ± 5% (5 to 30K Hz)*6 |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the
CV600 Spectral Colour Meter
For a quote, please email us at [email protected]
