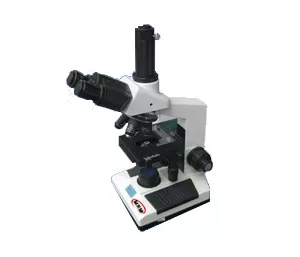

MRM-XSP-10CA Microscope

XSP-10CA Biological Microscope applys to medical, health, environmental protection, agriculture, forestry and other departments
▪Using Trinocular type design
▪Easy to operate
Category:

Product Description


Technical parameters
▪ Flat-field eyepiece: 6.3X, 10X, 16X;
▪ Achromatic objective: 4X, 10X, 40X (shells), 100X
▪ The total magnification: 25X-1600X;
▪ Mechanical tube length: 160mm;
▪ Binocular pupil distance: 54mm-76mm;
▪ Double deck mechanical stage: Size: 135mm × 135mm; Moving range: X direction: 70mm; Y direction: 50mm;
▪ NA1.25 condenser with iris diaphragm and filter;

▪
Camera and CCD interface is optional.



MODEL
XSP-10CA
TUBE
Trinocular
THE CONDENSER AND LIGHTBAR
Abbe condenser variable iris diaphragm and filter
EYEPIECE
Wide-angle eyepiece WF10X,Huygens eyepiece H16X
ACHROMATIC OBJECTIVE
4X,10X,
40X(S),100X(S)
LIGHTING
Halogen lamp 6V/20W
POWER SOURCE
Electric light source
Packing List
No.
Descriptions & Specifications
Quantity
1
Host
1
2
Objective
3
3
Eyepiece
3
4
Power supply
1
5
Operating Manual
1
6
Solution
1
7
Filter
Yellow(1);Green(1);Blue(1)
