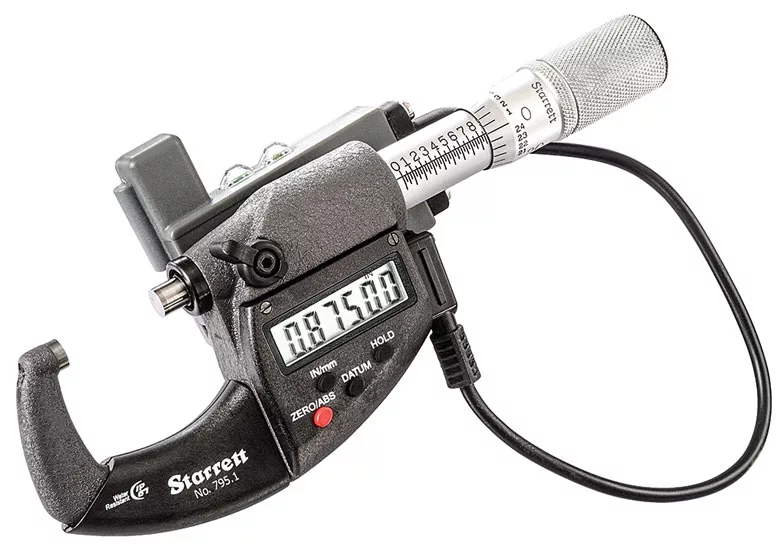

795.1XFL-1 Electronic Micrometer

The Starrett 795.1 Electronic Micrometers provide an IP67 level of protection against coolant, water, chips, dirt, dust, and other contaminants in hostile shop environments. The 795.1 includes an RS238 output port for data transmission and works well with Starrett DataSure Wireless Data Collection Systems. The 795.1 full-featured electronic micrometers are built with customary Starrett quality and workmanship. 0 to 25 mm (0-1″) Range, With Friction Thimble, With Carbide Faces, With RS232 Output Port.


Range: (0 to 25)mm / (0 to 1)”
Resolution: 0.001 mm / 0.00005″
Accuracy: ± 0.002 mm / ± 0.0001″



Category:

Product Description

  • Features
  • Specifications
  • Sets
  • Accessories
  • Downloads
  • Calibration
○ Balanced frame design for comfortable and accurate measuring
○ SPC Output
○ Large, easy-to-read, high-contrast LCD digital readout
○ Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
○ No-glare black wrinkle finish on frame
○ Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
○ Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
○ Ring-type knurled lock nut for quick and sure locking
○ Micro-lapped carbide measuring faces
Micrometer Type Outside
Range (0 to 25)mm / (0 to 1)”
Resolution 0.001 mm / 0.00005″
Anvil / Spindle Material Carbide
Anvil Type Flat
Spindle Type Flat
Lock Nut Type Lever
Thimble Type Friction
Thimble Graduations English
Display Type LCD
SPC Output Yes
Accuracy ± 0.002 mm / ± 0.0001″
No. S795.1AXFLZ
Range (0 to 75)mm / (0 to 3)”
Description Electronic micrometer set (set of 3)
Includes 795.1XFL-1, 795.1XFL-2, 795.1XFL-3
No. S795.1BXFLZ
Range (0 to 100)mm / (0 to 4)”
Description Electronic micrometer set (set of 4)
Includes 795.1XFL-1, 795.1XFL-2, 795.1XFL-3, 795.1XFL-4

Sets available upon request


795.1SCM SmartCable to multiplexer
795.1SCKB USB cable to PC (In focused window)
795.1SCU SmartCable with USB keyboard output
PT994292 Two 3-Volt Batteries, CR2032
