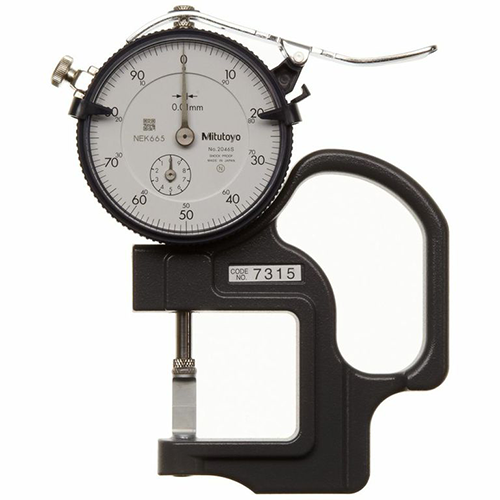

7315 Mitutoyo Thickness Gauge

7315A Mitutoyo Thickness Gauge, 10 mm

The 7315A Blade Anvil Dial Gauge can measure the thickness of grooves in a wide range of applications. The blade anvil extends into grooves to easily perform measurements that are otherwise extremely difficult to achieve with other indicators or instruments. The contact points are coated with ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever, and spring-loaded spindle allows for quick and easy measurements without sacrificing accuracy.

It comes with a one-year manufacturer’s warranty.
Shop for 7315A Thickness Gauge at MRM Metrology Inc. and save
Buy 7315A for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: 7315A Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration
â—‹ The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle
â—‹ Various models cover a wide range of applications
â—‹ Wide range of applications with various types of measuring faces
â—‹ Groove thickness measurement (blade anvil)
Range 0 to 10 mm
Graduation 0.01 mm
Accuracy ± 15 µm
Measuring force 1.4N or less
Remark Groove thickness
7315
21AZB149 Spindle lifting lever (stroke 12.7 mm / 0.5″) 21AZB150 Spindle lifting lever (stroke 25.4 mm / 1″)

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 7315A when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the 7315A Mitutoyo Thickness Gauge

For a quote, please email us at  [email protected]
