| ○ SPC output function offers quick and easy data management in real time |
| ○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated |
| ○ Functions include Origin Set, Zero Setting, Power On/Off, Data Output and inch/mm conversion |
| ○ Alarm: Low Voltage, Counting Value Composition Error |
| ○ Constructed of hardened stainless steel for better durability and longevity |
| ○ IP67 protection eliminates dust ingress, protects against temporary water submersion; allows use in environments exposed to cutting oil, dust, etc |
| ○ Unnecessary to wipe or clean the scale |
| ○ Supplied in fitted plastic case |
| Range | (0 to 200) mm , (0 to 8)” |
| Resolution | 0.01 mm , 0.0005″ |
| Accuracy | ± 0.001″ |
| Mass | 198 g |
| Display | LCD |
| Length Standard | ABSOLUTE electrostatic capacitance type linear encoder |
| Max. Response Speed | Unlimited |
| IP Rating | IP67 |
| SPC Output | Yes |
| Warranty | One-year limited manufacturers warranty |
| Included Items | |
| Battery (938882) | SR44 (1 pc) |
| Battery Life | Approx. 5 years under normal use |
| Optional Items | |
| 05CZA624 | SPC cable with data switch (1m/40”) |
| 05CZA625 | SPC cable with data switch (2m/80”) |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 573-702-20 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

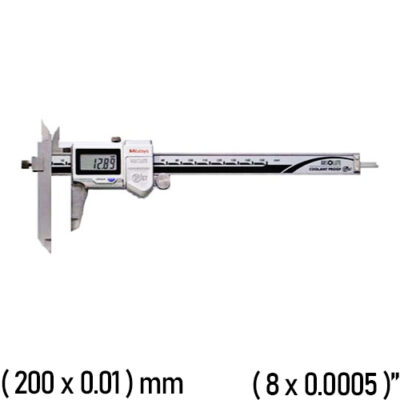

573-702-20 Mitutoyo Digimatic Offset Caliper
For a quote, please email us at [email protected]
