551-301-20 Mitutoyo Nib Style and Standard Jaws Caliper

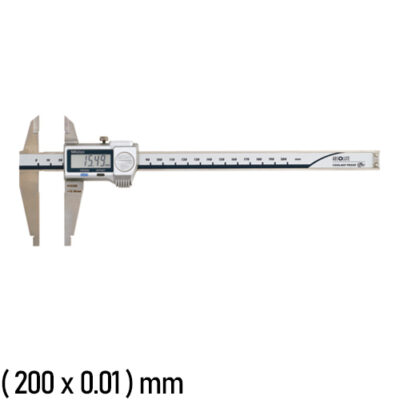

551-301-20 Mitutoyo Caliper, Digimatic Nib Style and Standard Jaws, 200 mm

The 551-301-20 Digimatic Caliper Absolute features lower nib style jaws with rounded measuring faces to fit rounded surfaces closer to make highly accurate inside dimension measurements. The upper standard jaws take highly accurate outside dimensions, making this digital caliper highly versatile. The caliper also has a high-resolution Vernier scale with 14-degree face angle to offer easier reading and helps prevent parallax error in the measurement.

It comes with a one-year manufacturer’s warranty.
Shop for 551-301-20 Digital Caliper at MRM Metrology, and save.
Buy 551-301-20 Caliper now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SPC
Absolute


Other Models
SKU: 551-301-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ SPC output function allows for quick and easy data management in real time
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
○ Functions include Origin Set, Zero Setting, Data Output
○ Alarm: Low Voltage, Counting Value Composition Error
○ The caliper is constructed of corrosion-resistant, hardened stainless steel
○ IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc
○ Unnecessary to wipe or clean the scale
○ Supplied in fitted plastic holster in carton

Range (0 to 200) mm
Resolution 0.01 mm
Accuracy ± 0.03 mm
Minimum Dimension in ID Measurement 10.1 mm
Mass 180 g
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type linear encoder
Max. Response Speed Unlimited
SPC Output Yes
Remarks IP67
Warranty One-year limited manufacturers warranty


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 3.5 years under normal use
Optional Items
05CZA624 SPC cable with data switch (1m / 40”)
05CZA625 SPC cable with data switch (2m / 80”)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 551-301-20 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
551-301-20 Mitutoyo Caliper, Digimatic Nib Style and Standard Jaws

For a quote, please email us at  [email protected]
