547-312S Thickness Gauge

547-312S Mitutoyo Thickness Gauge, 10 mm / 0.4″

The 547-312S lens thickness measurement digital indicator uses a reversible anvil to measure the thickness of various lenses with high accuracy. The indicators’ contact points are coated in ceramic for durability and corrosion resistance. The grip handle, easy-to-reach lifting lever, and spring-loaded spindle allows for faster, easier measurements without sacrificing accuracy and the white dial face is easier to read.

It comes with a one-year manufacturer’s warranty.
Shop for 547-312S Thickness Gauge at MRM Metrology Inc. and save
Buy 547-312S for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models
SKU: 547-312S Category:

Product Description

  • Features
  • Specifications

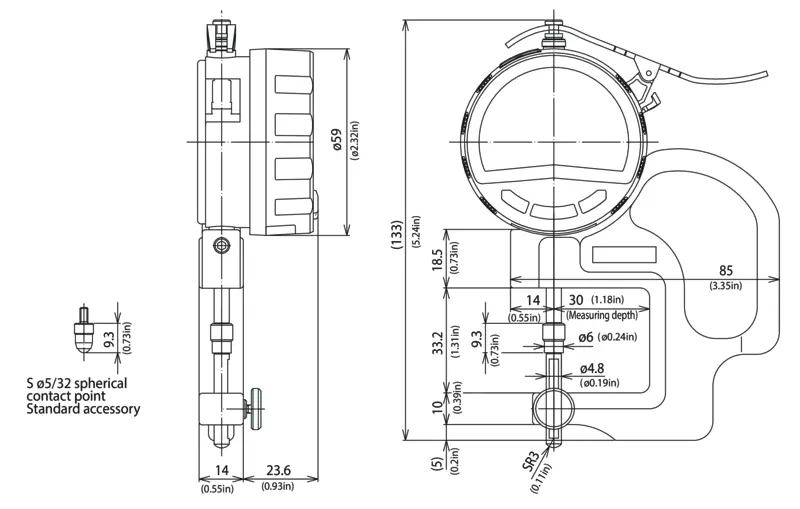

  • Dimensions
  • Accessories
  • Downloads
  • Calibration
○ The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle
○ Various models cover a wide range of applications
○ Wide range of applications with various types of measuring faces
○ Lens thickness measurement (reverse anvil)
Range (0 to 10)mm / (0 to 0.4)”
Resolution 0.01 mm / 0.0005″
Accuracy ± 0.001″
Measuring force 1.5N or less
Indicator Digimatic IDC

547-512S

905338 SPC cable (1m / 40″)
905409 SPC cable (2m / 80″)
21AZB149 Spindle lifting lever (stroke 12.7 mm / 0.5″)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 547-312S when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the 547-312S Thickness Gauge

For a quote, please email us at  [email protected]
