| ○ After the initial zero-setting with the Origin button, the repeated absolute positioning is no longer necessary over entire battery life. |
| ○ Unlimited response speed eliminates over-speed errors |
| ○ Similar in size to standard Series 2 dial indicators. |
| ○ SPC data output. |
| ○ Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only) |
| ○ Alarm: Low voltage, Counting value composition error, Over-flow error |
| Range | (0 to 12.7) mm |
| Resolution | 0.001 mm |
| Accuracy | ± 0.003 mm |
| Length Standard | ABSOLUTE electrostatic capacitance-type linear encoder |
| Max. Response Speed | Unlimited |
| Measuring Force | 1.5 N or less |
| Battery | SR44 (1 pc.) 938882 |
| Battery Life | Approx. 20,000 hours under normal use |
| Dust/Water Protection Level | IP42 |
Inspection certificate is included.
| 905338 | SPC cable (40”/1m) |
| 905409 | 905409: SPC cable (80”/2m) |
| 21EZA198 | Spindle lifting lever (ISO/JIS type) |
| 21EZA199 | Spindle lifting lever (ANSI/AGD type) |
| 540774 | Spindle lifting cable (stroke: .4” / 10 mm) |
| 21EZA105 | Lifting knob (mm) |
| 21EZA150 | Lifting knob (inch) |
| 125317 | Spare rubber boot (for dust-proof type) |
○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 543-790 when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

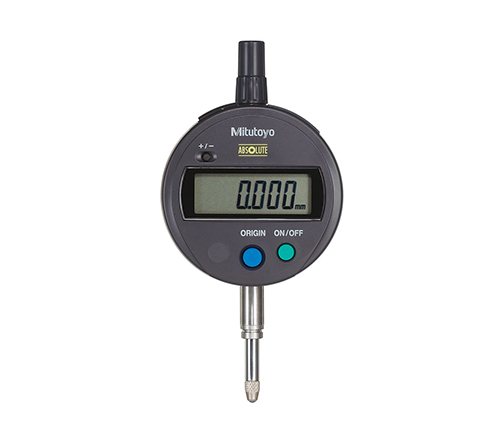

543-790 Mitutoyo Digimatic Indicator
For a quote, please email us at [email protected]
