543-783 Mitutoyo Indicator

543-783B-10 Mitutoyo Digimatic Indicator 12.7mm , 0.5″

Original price was: CAD 280.00.Current price is: CAD 229.00.

The 543-783B-10 Absolute Digimatic Indicator is part of the ID-SX2 series that features a compact design that is easy to use and read. Large push buttons provide direct, easy access to all of the indicator’s functions.

Readings are shown on a large 9 mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation which is useful in multi-point measurements.

Made in Japan and comes with a one-year manufacturer’s warranty.
Shop for 543-783B-10 Digital Indicator at MRM Metrology, and save.
Buy 543-783B-10 Indicator now for the lowest price.

Most Popular Indicator In Its Class


Email us for the lowest price.
Click on [email protected] to request a quotation.

Contact Points

Other Models

SKU: 543-783B-10 Categories: ,

Product Description

  • Features

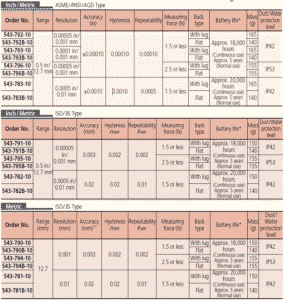

  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Similar in size to standard Series 2 dial indicators
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
○ Origin reset is not required even when data is re-displayed after disappearance due to insufficient illumination during use
○ SPC output function allows for quick and easy data management in real time
○ Origin set, zero set, counting direction switching, power On/Off, data output and inch/mm conversion
○ Alarm: Low voltage, counting value composition error, over-flow error
○ Unlimited response speed eliminates over-speed errors
○ IP42 for protection against objects greater than 1 mm and water
○ Supplied in a fitted plastic case

Range (0 to 12.7) mm , (0 to 0.5)”
Resolution 0.01 mm , 0.0005″
Accuracy ± 0.001″
Length Standard ABSOLUTE electrostatic capacitance-type linear encoder
Max. Response Speed Unlimited
Measuring Force 1.5 N or less
Dust/Water Protection Level IP42
Replacement 543-783B-10 replaces 543-783B

Inspection certificate is included.


Included Items
Battery (938882) SR44 (1 pc)
Battery Life Approx. 20,000 hours under normal use
Optional Items
905338 SPC cable (40”/1m)
905409 SPC cable (80”/2m)
21EZA198 Spindle lifting lever (ISO/JIS type)
21EZA199 Spindle lifting lever (ANSI/AGD type)
540774 Spindle lifting cable (stroke: 0.4” / 10 mm)
21EZA105 Lifting knob (mm)
21EZA150 Lifting knob (inch)
125317 Spare rubber boot (for dust-proof type)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 543-783B-10 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
543-783B-10 Mitutoyo Digimatic Indicator

For a quote, please email us at  [email protected]
