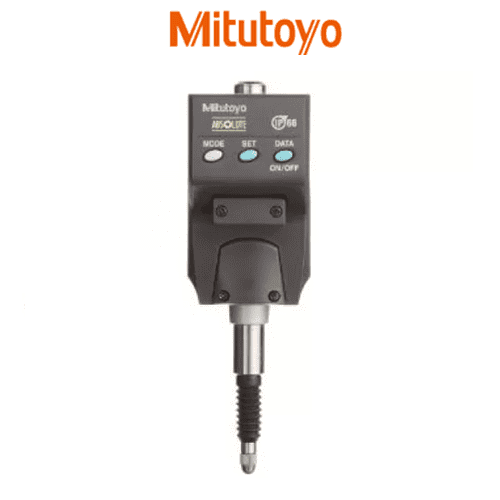

543-581 Mitutoyo Digimatic Indicator

543-581 Mitutoyo Digimatic Indicator, 5.6 mm / 0.22″

The 543-581 Digimatic Indicator ID-N/B Series 543-with Dust/Water Protection Conforming to IP66. The slim body design is advantageous for multi-point measurements. Improvement in workability with the LCD readout-rotation function.

It comes with a one-year manufacturer’s warranty.
Shop for 543-581 Digital Indicator at MRM Metrology, and save.
Buy 543-581 Indicator for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Contact Points

Other Models
SKU: 543-581 Categories: , ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Proven ABSOLUTE sensor, Back plunger design
○ Rated to IP66 water- and dust-proofing standard and oil resistance improved
○ The slim body design is advantageous for multi-point measurements
○ Improvement in workability with the LCD readout-rotation function
○ Built-in tolerance judgment function
○ Switchable resolution, Built-in hold/preset function
○ Waterproof data output connector
○ Zero-setting, Presetting, Direction switching, Tolerance judgment
○ Display hold, Data output, inch/mm conversion
○ Alarm: Over-flow error, Tolerance limit setting error
○ Alarm: Low voltage, Counting value composition error

Range (0 to 5.6) mm , (0 to 0.22)”
Resolution 0.01 mm , 0.0005″
Accuracy ± 0.02 mm , 0.0008″
Display LCD
Length Standard ABSOLUTE electrostatic capacitance type
Max. Response Speed Unlimited
Measuring Force 2.0N or less
Battery SR44 (1 pc.), 938882
Battery Life Approx. 7000 hours under normal use
Stem 3/8″
Thread #4-48 Thread
Type ANSI/AGD
Warranty One year limited manufacturers warranty

Indicator-Absolute-with-Dust-Water-Protection-ID-N-B


21EZA105 Lifting knob (for ISO/JIS model)
21EZA150 Lifting knob (for AGD model)
21EZA146 Lug (for JIS/ISO model)
238774 Lug (for AGD model)
02ACA376 Rubber boot (for ID-N, NBR)
238774 Rubber boot (for ID-N, silicon)
125317 Rubber boot (for ID-B, NBR)
21EAA212 Rubber boot (for ID-B, silicon)
21EAA194 SPC cable (40” / 1m)
21EAA190 SPC cable (80” / 2m)
21EAA210 Bifurcated connecting cable with zero-setting terminal (40”/1m)
21EAA211 Bifurcated connecting cable with zero-setting terminal (80”/2m)

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 543-581 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
543-581 Mitutoyo Digimatic Indicator

For a quote, please email us at  [email protected]
