513-501E Dial Indicator

513-501E Mitutoyo Dial Test Indicator (0 to 0.14) mm

The 513-501E pocket-type Dial Test Indicator features a slim profile that allows precision measurements in small, narrow spaces. It has a horizontal face parallel to the axis, and three dovetail mounts allow for horizontal or vertical mounting from the front, top, or back of the indicator. The Indicator’s one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response.

It comes with a one-year manufacturer’s warranty.
Shop for 513-501E Dial Test Indicator at MRM Metrology, and save.
Buy 513-501E Test Indicator now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

1 year warranty


Other Models

SKU: 513-501E Category:

Product Description

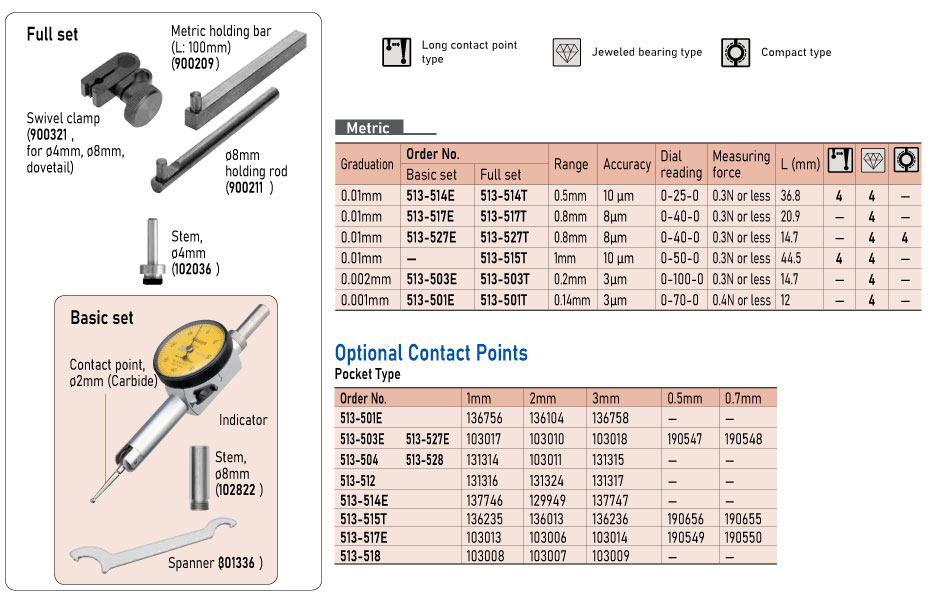

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Download
  • Calibration

○ Jeweled bearings assure higher sensitivity and accuracy
○ Reversible measuring direction
○ Fully adjustable bezel/dial face
○ Contact point is adjustable within 220°
○ Bezel is sealed with on O-ring to keep out water/oil
○ Two holding bars are supplied (Full sets only)

Range (0 to 0.14) mm
Graduation 0.001 mm
Acurracy ± 0.003 mm


Swivel clamp
Holding bar
Stem
Contact points

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 513-501E when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
513-501E Mitutoyo Test Indicator, Dial

For a quote, please email us at  [email protected]
