511-932-20 Mitutoyo Bore Gauge with 2923A-10 Dial Indicator

The 511-932-20 Dial Bore Gauge comes with interchangeable anvils and necessary accessories to perform inside diameter measurements with close tolerances. Carbide-tipped contact points for durability. Optional extension rods can be attached for measuring deep holes.

It comes with a one-year limited manufacturer’s warranty.
Shop for 511-932-20 Bore Gauge at MRM Metrology and save.

Other Models
SKU: 511-932-20 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Carbide-tipped contact points for durability
○ The dial indicator is fully protected by a rugged cover
○ Optional extension rods can be attached for measuring deep holes
○ With 21DZA000

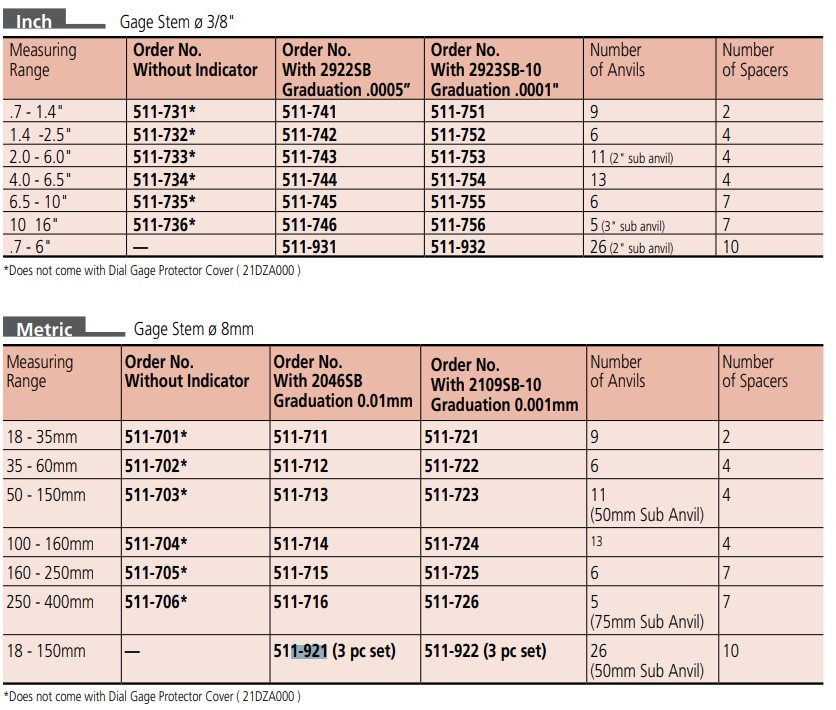

Range (18 to 150) mm
Graduation 0.002 mm
Accuracy 0.002 mm
Indication Stability 0.001 mm
No of Anvils 26 (50 mm sub anvil)
No of Spacers 10
Gauge Stem Ø 8 mm


Optional Items
953557 125 mm / 4.92” Extension rod
952361 250 mm / 9.84” Extension rod
953558 500 mm / 19.69” Extension rod
953559 750 mm / 29.53” Extension rod
953560 1000 mm / 39.37” Extension rod

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 511-932-20 when requesting calibration services from MRM Metrology.



Calibration and Repair Services

MRM provides Calibration and Repair Services for the
511-932-20 Mitutoyo Bore Gauge

For a quote, please email us at  [email protected]
