Mitutoyo Blade Micrometer

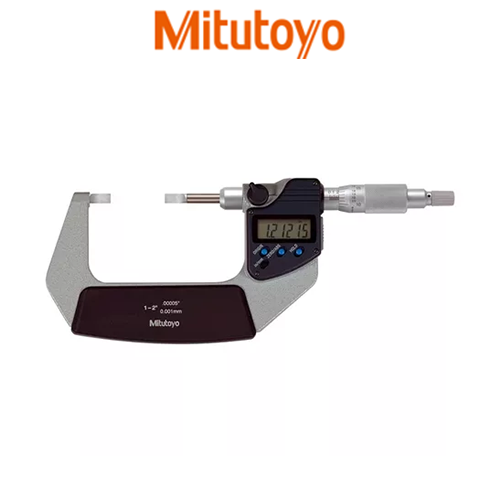

422-331-30 Mitutoyo Blade Micrometer

The 422-331-30 Micrometer Blade utilizes a blade anvil and spindle for measuring difficult pieces such as groove diameters of shafts and keyways. The non-rotating spindle reduces torsion on softer parts being measured and prevents workpiece deformation and wear. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Readings are displayed on an easy-to-read LCD readout.

It comes with a one-year limited manufacturer’s warranty.
Shop for 422-331-30 at MRM Metrology and use CAL 422-331-30 when ordering calibration services from MRM Metrology Inc.

SPC
Absolute
Other Models
Request a Quote
SKU: 422-331-30 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Ratchet thimble allows for easy single-hand use when measuring objects
○ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
○ Elimination of overspeed errors provides for more reliable and repeatable measurements
○ SPC output function allows for quick and easy data management in real time
○ Functions include Origin Set, Zero/ABS Setting, Data Hold, Data Output, Function Lock and inch/mm conversion
○ Alarm: Low Voltage, Counting Value Composition Error
○ Knurled friction thimbles provide quick adjustments even when wearing gloves
○ Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
○ Frame has a non-slip finish for better grip in shop environments
○ Supplied in fitted plastic case
○ IP54 protection resists debris, dust and water

Range (25.4 to 50.8) mm / (1 to 2)”
Resolution 0.001 mm / 0.00005″
Accuracy ± 3µm / ± 0.00015″
Remarks Type A
Parallelism 3µm or less / 0.00015″ or less
Display LCD
Mass 565 g

Mitutoyo Micrometer Blade

Mitutoyo Micrometer Blade

INCLUDED ITEMS
Battery (938882) SR44 (1 pc)
Battery Life Approx. 2.4 years under normal use
OPTIONAL ITEMS
05CZA662 SPC cable with data switch (1m / 40”)
05CZA663 SPC cable with data switch (2m / 80”)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
422-331-30 Mitutoyo Micrometer, Blade

For a quote, please email us at  Service@MRMmetrology.com
