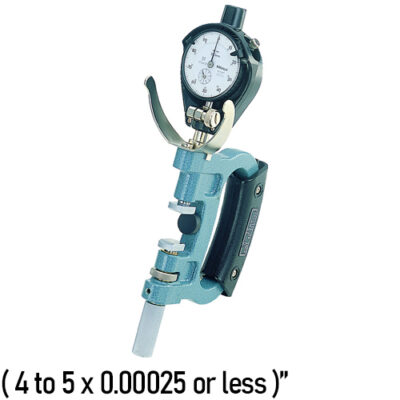

201-155 Mitutoyo Snap Gauge

Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes. Dial or Digital indicator is optional. Both front edges of the anvil are chamfered for easy insertion.
Shop for MRM 201-155 at MRM Metrology

Range (4 to 5)”
Parallelism 0.00025″ or less
Measuring Force 15N ± 3N
Other Models

SKU: 201-155 Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes
○ Dial indicator is optional
○ Both front edges of the anvil are chamfered for easy insertion
○ Gage stem diameter 3/8″

Range (4 to 5)”
Parallelism 0.00025″ or less
Measuring Force 15N ± 3N
Anvil Retracting Stroke 2 mm / 0.078″
Anvil Positioning Range 25 mm / 1″
Anvil Flatness 0.001 mm / 0.00004”
Recommended Dial Indicator 2803SB-10 (0.0001″ reading)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
201-155 Mitutoyo Snap Gauge

For a quote, please email us at  [email protected]
