| ○ Hammertone-green, baked-enamelfinished frame |
| ○ Ratchet Stop for exact repetitive readings |
| ○ With a standard bar |
| Included in Set | 103-183, 103-184, 103-185, 103-186, 103-187, 103-188, 6 micrometer standards |
| Range | (6 to 12)” |
| Graduation | 0.001″ |
| Accuracy | ± 0.0002″, ± 0.00025″ |
| Mass | 7695 g |
| Flatness | 0.000024″ |
| Measuring faces | Carbide tipped |
| Parallelism | [0.00008 + 0.00004 (L/4)]” L= max range (inch) |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

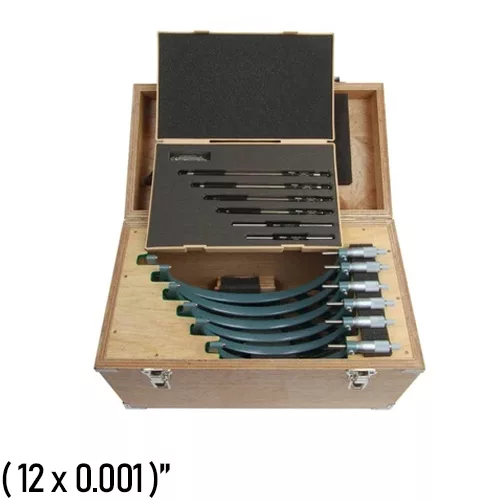

103-906 Mitutoyo Micrometer Set, Vernier
For a quote, please email us at [email protected]
