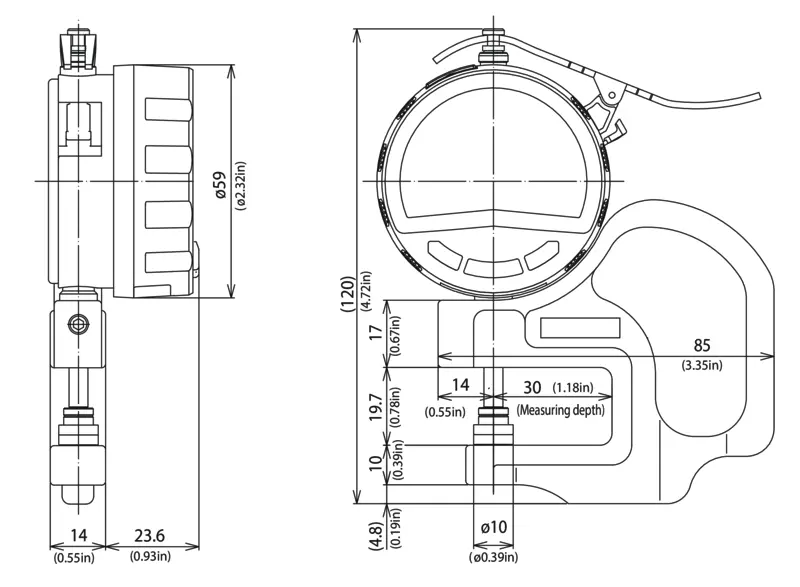

- Dimensions
- Accessories
- Downloads
- Calibration
| â—‹ Available with deep-throated frames. |
| â—‹ Available with SPC output capabilities. |
| â—‹ Spindles and anvils on most models are constructed with ceramic for better corrosion resistance. |
| â—‹ Signal can be output to an external device; waterproof data output connector protects against dust, water and oil ingress. |
| â—‹ ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on. |
| â—‹ Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during use. |
| â—‹ SPC output function allows for quick and easy data management in real-time. |
| â—‹ Unlimited response speed eliminates over-speed errors. |
| â—‹ Supplied in a fitted plastic case. |
| Range | (0 to 0.4)” |
| Resolution | 0.0005″ , 0.01 mm |
| Accuracy | ±20 µm |
| Indicator Type | Digimatic IDS |
| Indicator No | 543-712-10BS |
| Measuring Force | 3.5 or lessN |
| Spindle Material | Ceramic |
| Parallelism | 0.0005″ , 0.01 mm |
| Anvil Material | Carbide |
| ABS / INC (INC ZERO) | Yes |
| Function lock | Yes |
| GO/±NG judgement | Yes |
| DATA/HOLD | Yes |
| Counting direction switchable | Yes |
| MAX/MIN/RANGE | Yes |
| Calculation function (with formula) | Yes |
| Digimatic data output | Yes |
| Digimatic S1 Bidirectional interface | Yes |
| Analog bar resolution selection | Yes |
| Power Supply | 1 battery CR2032 (3V) |
| Battery Life | Continuous use: approx. 2700h |
| Digital Scale | Electrostatic capacitance type absolute linear encoder |
| Warranty | One-year limited manufacturers warranty |
| 905338 | SPC cable (1m / 40″) |
| 905409 | SPC cable (2m / 80″) |
| 21AZB149 | Spindle lifting lever (stroke 12.7 mm / 0.5″) |
â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 547-300S when requesting calibration services from MRM Metrology.
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

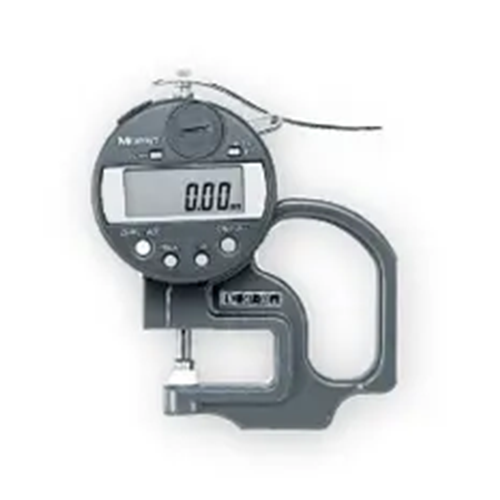

547-300S Mitutoyo Thickness Gauge
For a quote, please email us at  [email protected]
