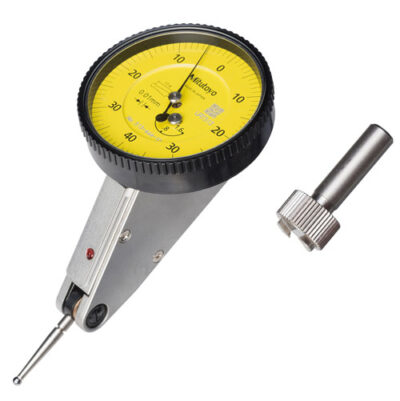

513-444-10E Mitutoyo Test Indicator

513-445-10E Mitutoyo Dial Test Indicator (0 to 0.4) mm

The 513-445-10E horizontal tilted face, vertical, and parallel type dial test indicators are specially designed for easy viewing of measurements in narrow or recessed areas which is inaccessible for standard dial indicators.

These specialty dial test indicators have a reversible measuring direction and adjustable contact point making them ideal for measuring surface variations in narrow or recessed areas with high precision. Their one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response. The horizontal face is parallel to the axis of the indicator, and the indicator can be mounted either horizontally or vertically from the front, top or back of the indicator.

It comes with a one-year manufacturer’s warranty.
Shop for 513-445-10E Dial Test Indicator at MRM Metrology, and save.
Buy 513-445-10E Test Indicator now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.

1 year warranty


Other Models

SKU: 513-445-10E Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Download
  • Calibration

â—‹ Specially designed for easy viewing of measurements
â—‹ Drastically enhanced durability, sensitivity and visibility
â—‹ Glare-free flat crystal face allows easy reading of graduations
â—‹ O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face
â—‹ The stylus length is on the dial face to reorder a replacement
â—‹ Multi-layer coatings on the crystal

Range (0 to 0.4) mm
Graduation 0.002 mm
Acurracy ± 0.005 mm

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 513-444-10E when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
513-444-10E Mitutoyo Dial Test Indicator

For a quote, please email us at  [email protected]
