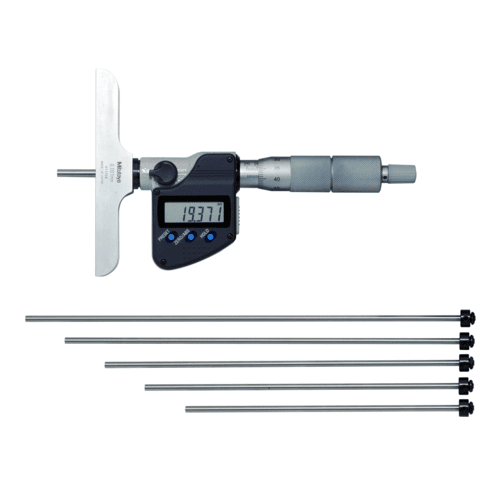

329-250-32 Mitutoyo Digimatic Depth Micrometer, 150mm

The 329-250-32 Digimatic Depth Micrometer Interchangeable Rod-Type offers great versatility for measuring a range of depths with the included extension rods. The Depth Micrometer’s rod contact measuring points are lapped and carbide tipped for incredible flatness and better precision. The ratchet stop mechanism provides uniform pressure for precise, repeatable measurements.

It comes with a one-year manufacturer’s warranty.
Shop for 329-250-32 Digital Depth Micrometer at MRM Metrology, and save.
Buy 329-250-32 Depth Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

1 year warranty
spc output

Other Models

SKU: 329-250-32 Category:

Product Description

  • Features
  • Specifications

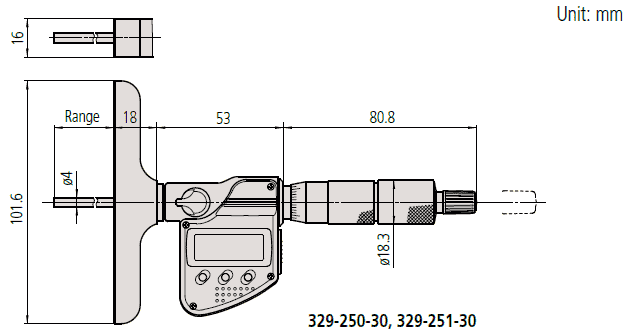

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

â—‹ Interchangeable rods provide a wide measuring range
â—‹ Data output function (329 Series) allows integration into statistical process control and measurement systems
â—‹ Functions includes: Origin point setting, Zero-setting, Hold, Data output, Auto power ON/OFF,Error alarm and Function lock

Range (0 to 150) mm
Resolution 0.001 mm
Accuracy 3
Base (101.6 x 16) mm
Base Flatness 2 µm
Rod Flatness 0.3 µm
Parellism between Reference Face and Measuring Rod Face 7 µm
Zero point error of rods ± 4 µm
No. of Rods 6
Unit of Measurement Metric
Display Digimatic (LCD)
Warranty One-year limited manufacturer’s warranty
Replacement 329-250-32 replaces 329-250-30, 329-250-10


Included
938882 SR44 Battery (1 pc.)
301336 Spanner
04GAA274 Spanner
202863 Hex-Spanner

Optional
Order No. Type Description
264-020 – USB Input Tool Series USB Keyboard Signal Conversion Type IT-020U
264-622 IP67 U-WAVE-TM
264-623 Buzzer U-WAVE-TM
264-626 IP67 U-WAVE-TMB
264-627 Buzzer U-WAVE-TMB
05CZA662 B Connection cable (1 m)
05CZA663 B Connection cable (2 m)
06AFM380B B USB Input Tool Direct (2 m)
02AZD730G IP67 U-WAVE-T
02AZD880G Buzzer U-WAVE-T
02AZE200 – U-WAVE-T mounting bracket
02AZD790B B Connection cable for U-WAVE-T (160 mm)
02AZE140B B Connection cable for U-WAVE-T For foot switch
02AZF310 IP67 Connecting unit for U-WAVE-TM/TMB

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 329-250-32 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
329-250-32 Mitutoyo Digimatic Depth Micrometer

For a quote, please email us at  [email protected]
