2904 Mitutoyo Dial Indicator

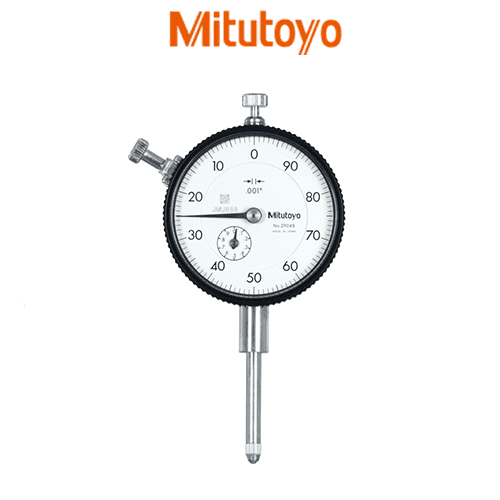

2904A Mitutoyo Dial Indicator, 1″

The 2904A Dial Indicator performs with excellent accuracy and reliability. The stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing provides wear resistance and low friction movements for smooth, precise operations. The secured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front face. The crystal has a scratch and glare-resistant coating for clearer readings and better durability. The outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools.

It comes with a one-year manufacturer’s warranty.
Shop for 2904A Dial Indicator at MRM Metrology, and save.
Buy 2904A Indicator now for the best price in Canada.

Email us for the lowest price.
Click on [email protected] to request a quotation.


Other Models

2904A replaces 2904S

SKU: 2904A Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ Standard dial indicator with a 0.375″ diameter stem, a #4-48 UNF contact point thread mount
○ Choice of white or black face, for measuring surface variations in fractional inches
○ Units displayed in fractional inches, and has a rotating bezel and limit markers
○ Stem design provides long clamping range, no through screw-hole on the frame for dust-and water resistance
○ Involute curved lifting lever provides smooth movement of spindle and dovetail joint for tool-less connection
○ Choice of flat or lug back for a variety of mounting options

Range (0 to 1)”
Graduation 0.001″
Accuracy ± 0.002″
Dial Reading (0 to 100)
Back Type Lug Back
Measuring Force 1.8 N or less
Warranty One-year limited manufacturers warranty



Backs
Contact Points

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 2904A when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
2904A Mitutoyo Dial Indicator

For a quote, please email us at  [email protected]
