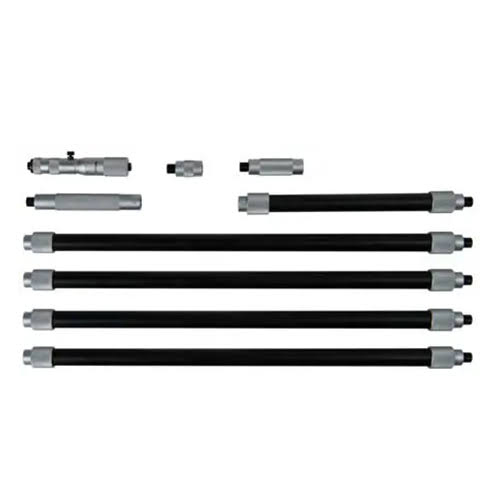

139-177 Mitutoyo Tubular Inside Micrometer

CAD 1,379.00

The 139-177 Mechanical Tubular Inside Micrometer includes a set of hollow extension pipes to measure a diversified range of inner dimensions of cylinders, rings and parallel surfaces with high accuracy. The extension pipes are lighter and more cost effective than extension rods. Slow head travel helps provide fine measurement position, while a locking clamp holds measurements in place for easier reading. The extension pipes have knurled collars for easy, secure installation and removal

It comes with a one-year manufacturer’s warranty.
Shop for 139-177 Mechanical Tubular Inside Micrometer at MRM Metrology, and save.
Buy 139-177 Tubular Inside Micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

SKU: 139-177 Category:

Product Description

  • Features
  • Specifications

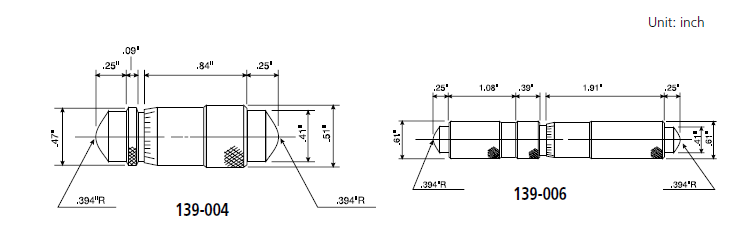

  • Dimensions
  • Accessories
  • Downloads
  • Calibration

â—‹ Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head
â—‹ Carbide-tipped measuring faces are available
â—‹ Series 137 supplied in fitted plastic case

Range (100 to 2100) mm
Graduation 0.001″
Accuracy ± (0.00004×R/2)”
Extension Pipes 25, 50, 100, 200, 400 (4pcs)
Head Travel 1″

â—‹ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
â—‹ Use CAL 139-177 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
139-177 Mitutoyo Tubular Inside Micrometer

For a quote, please email us at  [email protected]
