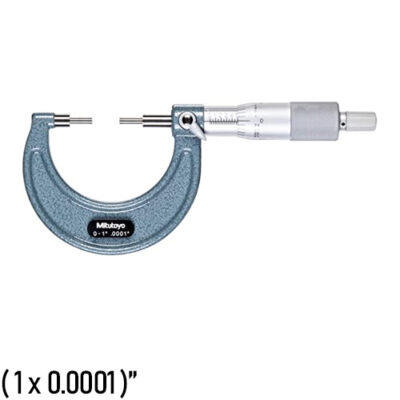

Mitutoyo Spline Micrometer

111-166 Mitutoyo Micrometer Spline (25 to 50) mm , (0 to 1)”

CAD 285.00

The 111-166 Spline micrometer is ideal for measuring minor indents, slots, spline shafts and keyways on workpieces. The anvil and spindle each have reduced diameters to measure internal features with high accuracy. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

It comes with a one-year manufacturer’s warranty.
Shop for 111-166 Spline micrometer at MRM Metrology, and save.
Buy 111-166 Spline micrometer now for the best price.

Email us for the lowest price.
Click on [email protected] to request a quotation.

Other Models
SKU: 111-166 Categories: ,

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

○ The anvil and spindle have a small diameter for measuring splined shafts,slots, and keyways
○ With Ratchet Stop for constant force
○ With a standard bar except (0 to 25) mm / (0 to 1)” model
○ Supplied in fitted plastic case

Range (25 to 50) mm , (0 to 1)”
Graduation 0.0001″ (Reading is obtained with vernier)
Accuracy ± 0.00015”
Mass 205 g
Remarks Type A
Flatness 0.000012”
Parallelism [0.00008” ± 0.00004 (L/4)”] L= Max range (inch)
Measuring Faces Carbide tipped
Warranty One-year limited manufacturers warranty

Mitutoyo Micrometer, Spline

Mitutoyo Micrometer, Spline

○ A Certificate of Calibration is included when calibration services are ordered from MRM Metrology Inc.
○ Use CAL 111-166 when requesting calibration services from MRM Metrology.

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
111-166 Mitutoyo Spline Micrometer

For a quote, please email us at  [email protected]
