| â—‹ With a Ratchet Stop for constant force |
| â—‹ Supplied with zero-setting standards bar for each range |
| â—‹ Wide measuring range with interchangeable anvils |
| â—‹ Supplied in fitted wooden case |
| Range | (100 to 150) mm |
| Graduation | 0.01 mm |
| Accuracy | ± (4+R/75) μm, R=max. range (mm) |
| Mass | 1.35 kg |
| Remarks | With 6 anvils & 5 standards |
| Flatness | 0.0006 mm |
| Parallelism | 0.003 mm |
| Measuring Faces | Carbide tipped |
Calibration and Repair Services
MRM provides Calibration and Repair Services for the

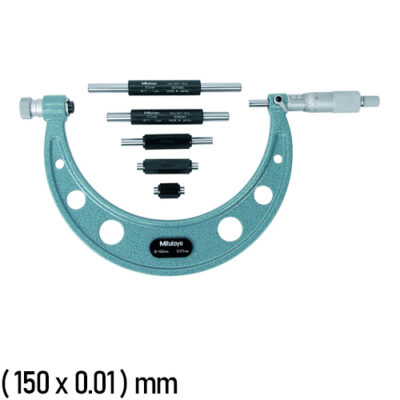

104-135A Mitutoyo Micrometer, Interchangeable Anvils
For a quote, please email us at  [email protected]
