Mitutoyo Micrometer Vernier Series 103

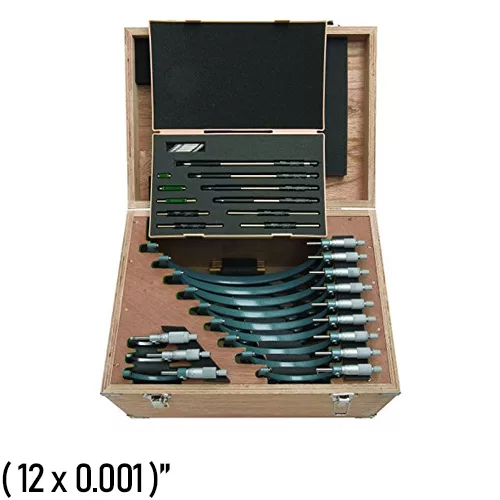

103-905-10 Mitutoyo Micrometer Set, Vernier

Hammertone-green, baked-enamel finished frame with Ratchet Stop or Friction Thimble for exact repetitive readings with a standard. Included in set 103-177, 103-178, 103-179, 103-180, 103-181, 103-182,103-183, 103-184, 103-185, 103-186, 103-187, 103-188, 11 micrometer standards.


Range (0 to 12)”
Graduation 0.001″
Accuracy ± 0.0001″, ± 0.00015″, ± 0.0002″, ± 0.00025″
Other Models

SKU: 103-905-10 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Acccessories
  • Downloads
  • Calibration

○ Hammertone-green, baked-enamelfinished frame
○ Ratchet Stop for exact repetitive readings
○ With a standard bar

Included in Set 103-177, 103-178, 103-179, 103-180, 103-181, 103-182,103-183, 103-184, 103-185, 103-186, 103-187, 103-188, 11 micrometer standards
Range (0 to 12)”
Graduation 0.001″
Accuracy ± 0.0001″, ± 0.00015″, ± 0.0002″, ± 0.00025″
Mass 9000 g
Flatness 0.000024″
Measuring faces Carbide tipped
Parallelism [0.00008 + 0.00004 (L/4)]” L= max range (inch)

Mitutoyo Micrometer Series-103

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
103-905-10 Mitutoyo Micrometer Set, Vernier

For a quote, please email us at  [email protected]
