Mitutoyo Micrometer Vernier Series 103

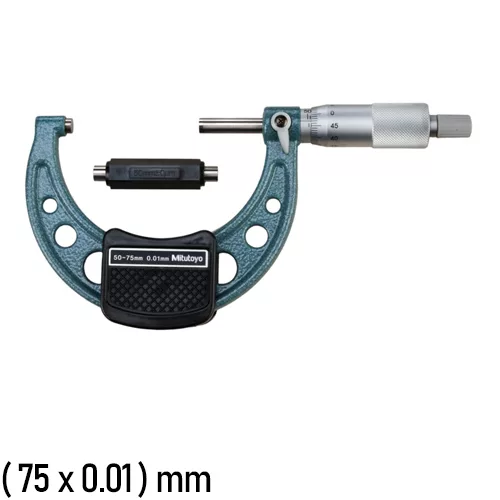

103-139-10 Mitutoyo Micrometer, Vernier

Hammertone-green, baked-enamel finished frame with Ratchet Stop for exact repetitive readings. A standard bar except for 0-25mm model.


Range (50 to 75) mm
Graduation 0.01 mm
Accuracy ± 0.002 mm
Other Models

SKU: 103-139-10 Category:

Product Description

  • Features
  • Specifications
  • Dimension
  • Acccessories
  • Downloads
  • Calibration

â—‹ Hammertone-green, baked-enamelfinished frame
â—‹ Ratchet Stop for exact repetitive readings
â—‹ With a standard bar

Range (50 to 75) mm
Graduation 0.01 mm
Accuracy ± 0.002 mm
Mass 315 g
Flatness 0.0006 mm
Measuring faces Carbide tipped
Parallelism (2 + R / 100) µm, R = max. range (mm)

Mitutoyo Micrometer Series-103

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
103-139-10 Mitutoyo Micrometer, Vernier

For a quote, please email us at  [email protected]
