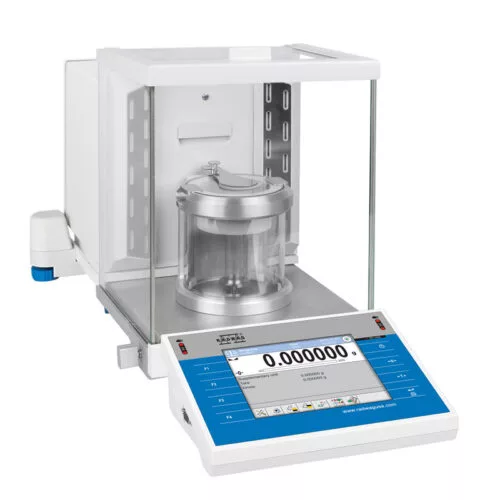

XA 6/21.4Y.M.A.P PLUS Radwag Micro-Balance

The XA 4Y.M.A.P PLUS Micro-Balance is a modern solution for piston pipettes calibration where high accuracy and measurement speed are a must.
They are equipped with reliable measuring system housed in a hermetic casing, this guarantees fast and precise measurement in almost any laboratory conditions. External factors such as air drafts, dust, vibrations, operator competence – all of them generate disturbances that influence the final result of a measurement.

Equipped with range of protections designed to eliminate errors (hermetic weighing chamber, vibrations dampening filters), and tools informing about errors occurrence (vibration sensor, electronic levelling device, ambient conditions module).

Shop for XA 6/21.4Y.M.A.P PLUS at MRM Metrology and use CAL XA 6/21.4Y.M.A.P PLUS when ordering calibration services.

SPC
Other Models

SKU: XA 6/21.4Y.M.A.P PLUS Category:

Product Description

  • Features
  • Specifications
  • Dimensions
  • Accessories
  • Downloads
  • Calibration

o Data exchange though USB storage devices: update balance software, export weighing data, export/import databases, export/import balance settings and exchange data between balances
o Infrared proximity sensors. Optional functions: PRINT function, TARE function and sensor’s sensitivity adjustment
o Protability: Elimination of extra sources of vibration, Convenience and comfort of weighing in fume cupboards and laminar flow cabins and Balance isolation form influence of environmental conditions
o Interfaces: Ethernet, 2×USB, 2×RS 232, 4 in / 4 out and WiFi 2,4GHz b,g,n
o Removable weighing chamber: Fully removable components of the weighing chamber, uncomplicated and fast disassembly requiring use of no tools, latch-type system for components assembly and easy maintenance and cleaning
o 2-Point adjustment: It minimizes linearity errors simultaneously providing reliable indications for the whole weighing range
o Reflex Level System. New autolevelling system PLUS series balances ensures: Ground tilt test, automatic balance levelling, control of the correct balance level and confirmation of correct balance level on adjustment and weighing reports
o Antistatic Weighing Chamber: The ionizer neutralizes any uncompensated electric charge accumulated on the weighed object. The influence of static electricity gives greater repeatability error, often also greater error of indication
o Smart min weight: PLUS balances automatically adjusts resolution of the range to the currently weighed mass
o Compliance with 21 CFR Part 11. Full data protection is ensured by: Advanced password settings, verification of log-in operation correctness, assigning permissions to operators, auto log out, electronic signature, e.g. for series of measurements, granting/denying access to data management, data backup and modifications saved to Audit Trail file
o Pressure Equalization System: Elimination of errors caused by pressure variations
o Lit-Up weighing pan: Directional LED diode that does not influence the temperature inside the weighing chamber

Maximum Capacity [Max] 6 / 21 g
Minimum Load 0.1 mg
Readability [d] 1 / 2 µg
Tare Range -21 g
Verification Scale Interval [e] 1 mg
Standard Repeatability [5% Max] 1.3 µg
Standard Repeatability [Max] 3.5 µg
Standard Minimum Weight (USP) 2.6 mg
Permissible Repeatability [5% Max] 2 µg
Permissible Repeatability [Max] 5 µg
Linearity ± 9 µg
Eccentric Load Deviation 15 µg
Stabilization Time ~ 3.5 s
Adjustment Internal (automatic)
OIML Class I
Standard Minimum Weight (U=1%, k=2) 0.26 mg
Protection Class IP 43
Levelling System Automatic – Reflex Level System
Display 5.7” resistive Colour Touchscreen
Weighing Chamber Dimensions 199 × 170 × 217 mm
Weighing Pan Dimensions ø26 mm
Packaging Dimensions 720 × 385 × 485 mm
Net Weight 14.5 kg
Gross Weight 18.9 kg
Communication Interface 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi
Power Supply 100 — 240 V AC 50/60 Hz
Power Consumption Max. 10 W
Operating Temperature +10 — +40 °C
Relative Humidity 20% — 80%

Receipt Printer
Granite Antivibration Tables
Label Printers
Barcode scanners
Power Adapters
Professional weighing table
Antivibration Tables for Laboratory Balances
THBR 2.0 System – Ambient Conditions Monitoring
Protective cover for balances
Anti-Draft Chamber for XA 4Y Balances
RS 232, RS 485 cables
RS 232 – USB Converter
22-12-2021 3/3 radwag.com
Workstation for Pipettes Calibration
R-Pipettes” Computer Software
USB Hubs
Displays
RS 232 cables (scale – EPSON printer)

Calibration and Repair Services

MRM provides Calibration and Repair Services for the
XA 6/21.4Y.M.A.P PLUS Radwag Micro-Balance

For a quote, please email us at  Service@MRMmetrology.com
